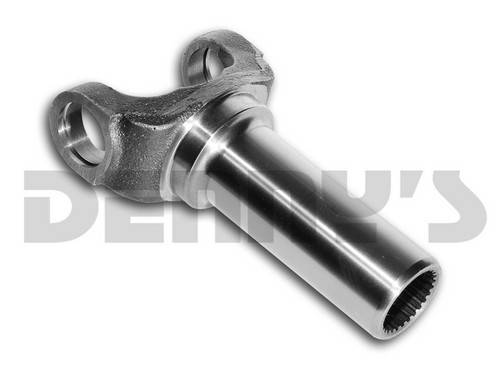

DANA SPICER 2-3-6081X Transmission Slip Yoke 1310 series fits all 27 spline manual and automatic transmissions including Powerglide, Turbo 350, T375, 700R, 200R, 4L60, 4L65, Muncie M20, M21, M22, Saginaw, Borg Warner T-5, T-10, T-56, Tremec, Auto Gear
2-3-6081X
DANA SPICER 2-3-6081X
Transmission Slip yoke
- 1310 Series
- 27 spline
- Fits all 27 spline manual and automatic transmissions including Powerglide, Turbo 350, T375, 700R, 200R, 4L60, 4L65, Muncie M20, M21, Saginaw, Borg Warner T-5, T-10, T-56, Tremec
- Typically found in early 1970's and newer Chevy full size, Chevelle, Camaro, Nova and others requiring a 1310 series 27 spline slip yoke. Excellent choice for any street rod or restoration project.
- See 2-3-4911X for shorter first generation slip yoke
- 2-3-6081X overall length is 1/2 inch longer and has more operating angle than first gen part number 2-3-4911X
- Length to center of u-joint... Dimension #1 = 5.469 inches
- Barrel Diameter... Dimension #2 = 1.500 inches
- Barrel Length... Dimension #3 = 3.625 inches
- U-joint cap diameter... Dimension #4 = 1.062 inches
- U-joint width... Dimension #5 = 3.219 inches
- Series... 1310
- Lockup...OUTSIDE Snap Ring
- Spline count... 27
Pricing:
$61.95
Description
DANA SPICER 2-3-6081X
Transmission Slip yoke
- 1310 Series
- 27 spline
- Fits all 27 spline manual and automatic transmissions including Powerglide, Turbo 350, T375, 700R, 200R, 4L60, 4L65, Muncie M20, M21, Saginaw, Borg Warner T-5, T-10, T-56, Tremec
- Typically found in early 1970's and newer Chevy full size, Chevelle, Camaro, Nova and others requiring a 1310 series 27 spline slip yoke. Excellent choice for any street rod or restoration project.
- See 2-3-4911X for shorter first generation slip yoke
- 2-3-6081X overall length is 1/2 inch longer and has more operating angle than first gen part number 2-3-4911X
- Length to center of u-joint... Dimension #1 = 5.469 inches
- Barrel Diameter... Dimension #2 = 1.500 inches
- Barrel Length... Dimension #3 = 3.625 inches
- U-joint cap diameter... Dimension #4 = 1.062 inches
- U-joint width... Dimension #5 = 3.219 inches
- Series... 1310
- Lockup...OUTSIDE Snap Ring
- Spline count... 27
Details
- 2-3-6081X
- 2-3-6081X
- Spicer
- Available
- New
Categories
- Driveline Parts - Slip Yokes - SLIP YOKES - For Automatic and Manual Transmission
- Slip Yokes - SLIP YOKES - For Automatic and Manual Transmission - General Motors
- SLIP YOKES - For Automatic and Manual Transmission - General Motors - 27 Spline 1310 Series - Fits 3 7/32 by 1 1/16 U-Joint
- General Motors - 27 Spline 1310 Series - Fits 3 7/32 by 1 1/16 U-Joint - 5.5 INCH
Shipping Information
- Item Requires Shipping
- 3.0 lbs.
- W6.0000” x H5.0000” x L8.0000”
