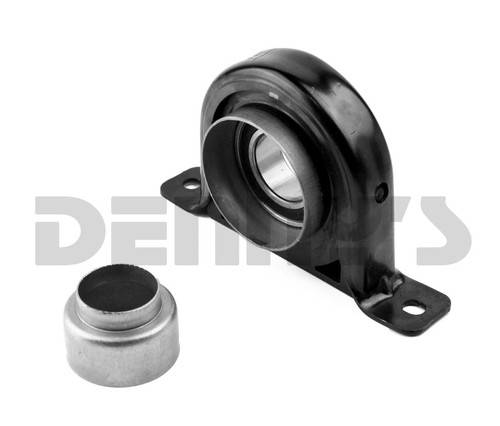

Dana Spicer 212258-1X Center Support Bearing with 1.574 inch ID fits 2004 to 2012 Nissan Titan

212258-1X

Dana Spicer 212258-1X

  • Center Support Bearing for 2 piece driveshaft
  • Fits 1 1/2 inch DIAMETER SPLINE
  • Fits Nissan Titan
    • 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
Limited Supply: only 2 remaining
Pricing: $81.93

Qty:

Description

Dana Spicer 212258-1X

  • Center Support Bearing for 2 piece driveshaft
  • Fits 1 1/2 inch DIAMETER SPLINE
  • Fits Nissan Titan
    • 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

DIMENSIONS

  • CENTER SUPPORT BEARING
    • RUBBER MOUNTED with canister,  with boot can included
  • A = ID of Bearing = 1.574 inches
  • B = CL to MOUNTING SURFACE = 2.250 inches
  • C = BRACKET WIDTH = 1.226 inches
  • D = MOUNTING HOLE Dimension = 6.700 inches
    • MOUNTING HOLE Diameter = .470 inch

Dana Spicer 212258-1X dimensions for Nissan Titan center support bearing

Details

  • 212258-1X
  • 212258-1X
  • Spicer
  • Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W10.0000” x H10.0000” x L3.0000”
