Dana Spicer 212028-1X Center Support Bearing 1.574 ID fits Chevy and GMC Avalanche, Suburban, Silverado, Sierra, Tahoe, Yukon, Savana, Express

DANA SPICER 212028-1X

Driveshaft Center Support Bearing

• NOTE: See 212032-1X for same bearing with spacer plate

Fits CHEVY and GMC

• Avalanche 1500, 2500 - 2002, 2003, 2004, 2005, 2006
• Avalanche - 2007, 2008, 2009, 2010
• C1500 Suburban - 1999
• Express 1500, Savana 1500 - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

• K1500 - 1999
• Silverado
  • 1500 - 1999, 2000, 2001, 2002, 2003, 2004
  • 1500HD - 2001, 2002, 2003 and 2006
  • 2500 - 2000, 2001, 2002, 2003, 2004
  • 2500HD - 2001, 2002, 2003, 2004, 2005, 2006, 2007
  • 3500 - 2001, 2002, 2003, 2004, 2005, 2006
  • 3500HD - 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

• Suburban 1500, 2500 - 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
• Tahoe - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
• Sierra
  • 1500 - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
  • 1500HD - 2002, 2003
  • 2500 - 2000, 2001, 2002, 2003, 2004
  • 2500HD - 2001, 2002, 2003, 2004, 2005, 2006, 2007
  • 3500 - 2001, 2002, 2003, 2004, 2005, 2006
  • 3500HD - 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
• Yukon - 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

Fits SPLINE OD = 1 1/2 inch

• 212028-1X has (2) Metric Threaded Studs attached to bracket

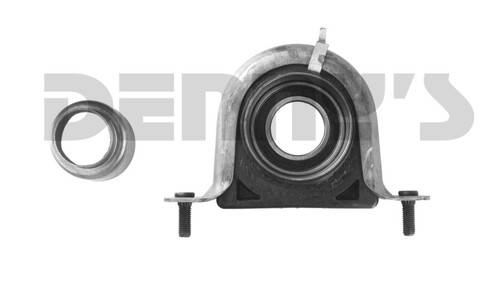

• CENTER SUPPORT BEARING
  • RUBBER MOUNTED with canister,  with boot can included

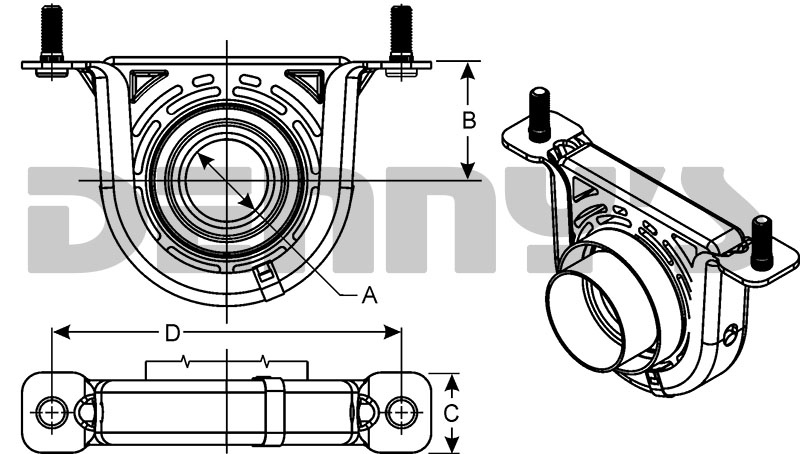

• A = ID of Bearing = 1.574 inches
• B = CL to MOUNTING SURFACE = 2.250 inches
• C = BRACKET WIDTH = 1.226 inches
• D = MOUNTING HOLE Dimension = 6.620 inches
  • MOUNTING STUD Diameter =  M10 x 1.5 ... Metric Thread
