Dana Spicer 212024X Double Cardan CV Flange Yoke 1350 series fits FORD with 4.25 inch bolt circle and 2 inch pilot on front or rear transfer case flange
Part #:
212024X
Your Cost $71.06

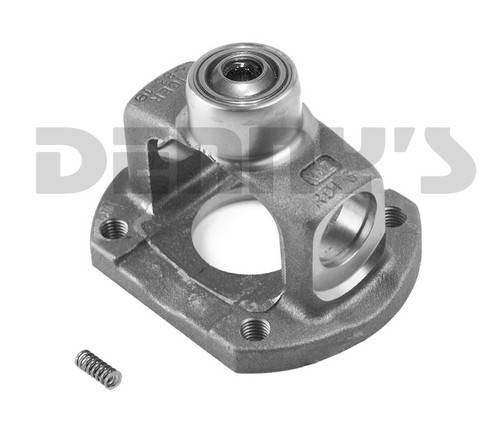

Dana Spicer 212024X

Double Cardan CV Flange Yoke

  • Fits Ford Bronco, F150, F250, F350 transfer case rear output flange with 2 inch pilot diameter
    • NOTE: Some had the 2.68 inch pilot diameter ...please check this before ordering
    • DOES NOT FIT any greaseable style 1350 series stud yokes
    • DOES NOT FIT OEM Driveshaft with press on ball.
  • 1350 Series
  • NON Greaseable style
  • 4 Mounting holes are threaded to accept OEM Ford bolts
  • Use with 1350 Series U-Joints listed below.
  • Needle Bearing Ball Socket fits 1/2 inch stud yoke
  • Comes with New Spring included

DIMENSIONS

  • Bolt Circle.... 4.25 inches measured diagonally
  • Pilot Diameter... 2 inches
  • Fits universal joint 3.625 inches cap to cap (3 5/8 inches)
  • Fits u-joint bearing cap diameter 1.187 inches (1 3/16 inches)
  • Please see the bottom of this page for new rubber boot

image/jpeg

Spicer
Dana Spicer 212024X Double Cardan CV Flange Yoke 1350 series fits FORD with 4.25 inch bolt circle and 2 inch pilot on front or rear transfer case flange
Dana Spicer 212024X Double Cardan CV Flange Yoke 1350 series fits FORD with 4.25 inch bolt circle and 2 inch pilot on front or rear transfer case flange
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $71.06

Dana Spicer 212024X

Double Cardan CV Flange Yoke

  • Fits Ford Bronco, F150, F250, F350 transfer case rear output flange with 2 inch pilot diameter
    • NOTE: Some had the 2.68 inch pilot diameter ...please check this before ordering
    • DOES NOT FIT any greaseable style 1350 series stud yokes
    • DOES NOT FIT OEM Driveshaft with press on ball.
  • 1350 Series
  • NON Greaseable style
  • 4 Mounting holes are threaded to accept OEM Ford bolts
  • Use with 1350 Series U-Joints listed below.
  • Needle Bearing Ball Socket fits 1/2 inch stud yoke
  • Comes with New Spring included

DIMENSIONS

  • Bolt Circle.... 4.25 inches measured diagonally
  • Pilot Diameter... 2 inches
  • Fits universal joint 3.625 inches cap to cap (3 5/8 inches)
  • Fits u-joint bearing cap diameter 1.187 inches (1 3/16 inches)

IMPORTANT: The "SPICER" name must be visible on your original H-Yoke and Flange yoke to use these replacement parts.

If you have a driveshaft that looks like the one in these photos then this cv will NOT work.

  • Please notice the shape of the mounting flange...if yours looks like the mounting flange in the photo on the left then this CV will not fit.
  • Please notice the squared shape of the H-Yoke around the holes for the u-joint cap and snap ring in the photo on the right. ... If yours has the squared shape then this CV will not fit.
  • If you have a driveshaft with a pressed on ball on the cv stud yoke then this cv kit will NOT work.
