DANA SPICER 2-2-1049 Flange Yoke 1210 series Fits BRONCO II with SMALL Bolt Pattern
Part Number:
2-2-1049


UPC:
023913231873
Your Cost $92.95 Sale Price $87.56
You Save $5.39
STATUS:  IN STOCK

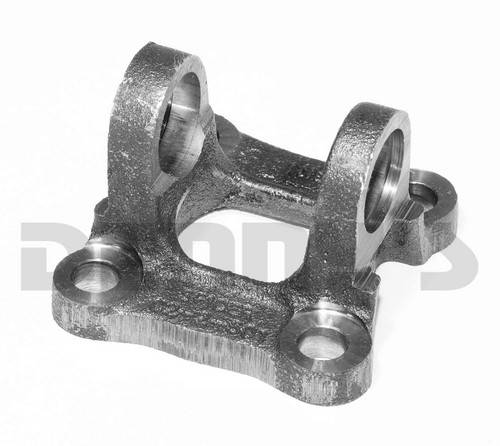

DANA SPICER 2-2-1049

1210 Series Ford Flange Yoke to fit Bronco II rear ends.
   Designed for the SMALL Ford bolt pattern.


Spicer
DANA SPICER 2-2-1049 Flange Yoke 1210 series Fits BRONCO II with SMALL Bolt Pattern
DANA SPICER 2-2-1049 Flange Yoke 1210 series Fits BRONCO II with SMALL Bolt Pattern
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $92.95 Sale Price $87.56
You Save $5.39

DANA SPICER 2-2-1049

1210 Series Ford Flange Yoke to fit Bronco II rear ends.  Designed for the SMALL Ford bolt pattern.

  • FORD SMALL Bolt pattern = 2.5 inches by 2.5 inches
  • Bolt Circle Diameter = 3.5 inches
  • Center Pilot Hole Diameter is 2.0 inches
  • 1210 series dimensions
    • 2.438 between snap rings (2 7/16 inches)
    • 1.062 bearing cap diameter (1 1/16 inches)

PLEASE NOTE: On RANGER applications you MUST measure the bolt pattern and universal joint cap diameter and universal joint width before purchasing a flange yoke.

  • You may have a larger 1310 or 1330 series universal joint
  • You may also have the large bolt pattern.
  • PLEASE CHECK your dimensions before purchasing
