250083-58 Spline and Slip yoke set 1310 series fits 2.5 inch 0.083 wall steel tube allows maximum 3 inches of slip travel

250083-58

Spicer Spline and Slip yoke set

• Fits 2.5 inch steel tube OD with 0.083 wall thickness
• Fits 1310 series universal joint (see choices at bottom of page)
  • 3.219 wide cap to cap
  • 1.062 cap diameter
  • outside snap rings
• Maximum of 3 inches slip travel
• Spicer Slip yoke 1.375 x 16 splines has press on seal with grease fitting
• Spicer Spline is glidecoated (blue coating) 2.25 inches for wear resistance if properly lubricated
  • Spline butt diameter to press fit into tube - 2.345 inches

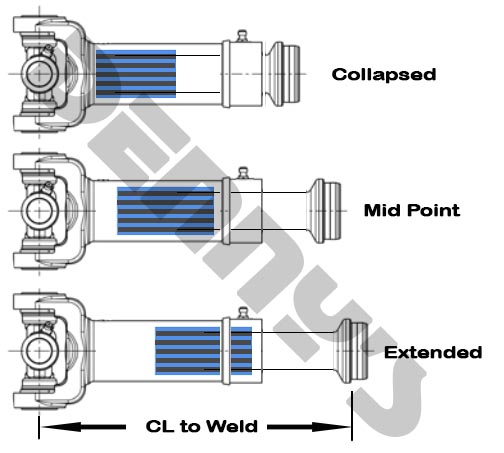

The following dimensions are taken with the supplied seal installed.

• **CL to weld Collapsed Dimension -  7.875 inches
• **CL to weld Dimension at MID travel -  9.375 inches
• CL to weld Fully Extended Dimension -  10.875 inches

**Caution --- Using a rubber boot in place of the seal will lengthen the collapsed and mid point dimensions. You must factor this into your build dimensions before cutting, welding and building the driveshaft
