Neapco N6-1-1253-8 Companion Flange 1710 series 4.000 bore 1.000 keyway 7.250 bolt circle 7.750 pilot
N6-1-1253-8
Neapco N6-1-1253-8

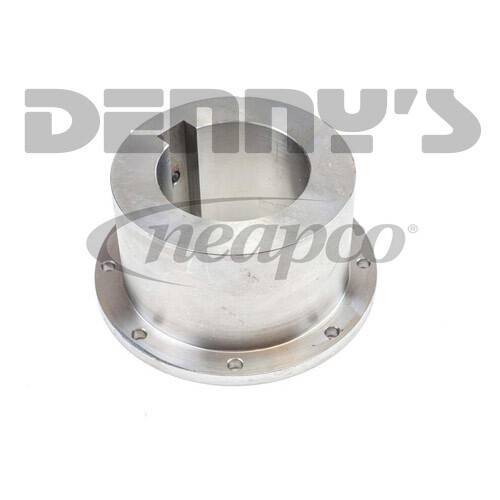

Companion Flange - 4 inch round bore with 1 inch keyway

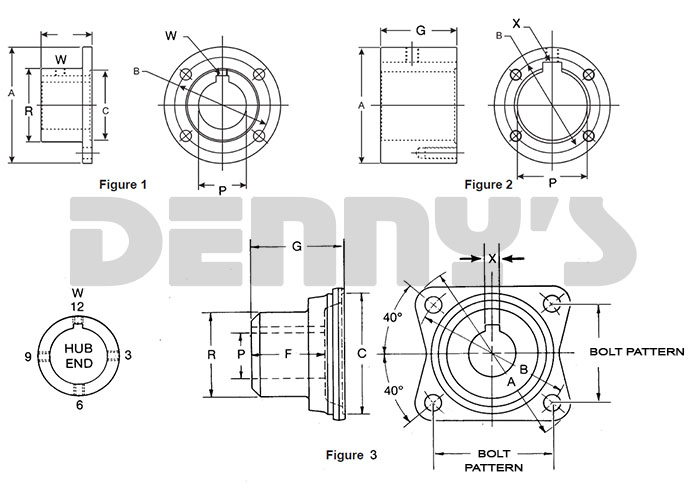

Dimensions - See Figure 1
- Driveline Series: 1710
- Flange Type: Standard
- A- Outside Diameter (In):8.000
- B- Bolt Circle (In): 7.250
- Hole Diameter (In): 0.391 drilled
- Number Of Bolt Holes: 8
- C- Pilot Diameter (In): 7.750 F
- P - Round Bore Dia. (In): 4.000
- Keyway Width (In): 1.000
- Overall Length (In): 4.000
- Set Screw Hole Size/Thread (In): 0.500-13
Limited Supply: only 1 remaining
Pricing:
$284.19
Description
Neapco N6-1-1253-8
Companion Flange - 4 inch round bore with 1 inch keyway
Dimensions - See Figure 1
- Driveline Series: 1710
- Flange Type: Standard
- A- Outside Diameter (In):8.000
- B- Bolt Circle (In): 7.250
- Hole Diameter (In): 0.391 drilled
- Number Of Bolt Holes: 8
- C- Pilot Diameter (In): 7.750 F
- P - Round Bore Dia. (In): 4.000
- Keyway Width (In): 1.000
- Overall Length (In): 4.000
- Set Screw Hole Size/Thread (In): 0.500-13
Compatible Flange Yokes - select from choices at bottom of this page
- 1610 series
- 5-2-629
- 5-2-619
- 1710 series
- 6-2-769
- 6-2-749-1
- 6-2-749
- N6-2-749
- 6-2-959
- 6-2-1239
