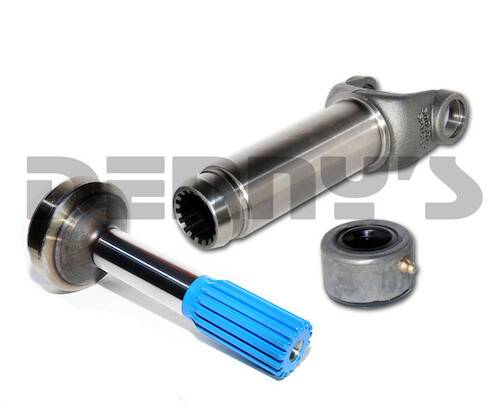

350083-51 Spline and Slip yoke set 1310 series fits 3.5 inch 0.083 wall steel tube allows maximum 3 inches of slip travel
Part Number:
350083-51


UPC:
Your Cost $198.95
STATUS:  IN STOCK - FREE SHIPPING

350083-51

Spicer Spline and Slip yoke set

  • Fits 3.5 inch steel tube OD with 0.083 wall thickness
  • Fits 1310 series universal joint (see choices at bottom of page)
    • 3.219 wide cap to cap
    • 1.062 cap diameter
    • outside snap rings
  • Maximum of 3 inches slip travel
  • Spicer Slip yoke 1.375 x 16 splines has press on seal with grease fitting
  • Spicer Spline is glidecoated (blue coating) 2.25 inches for wear resistance if properly lubricated
    • Spline butt diameter to press fit into tube - 3.345 inches
Spicer
350083-51 Spline and Slip yoke set 1310 series fits 3.5 inch 0.083 wall steel tube allows maximum 3 inches of slip travel
350083-51 Spline and Slip yoke set 1310 series fits 3.5 inch 0.083 wall steel tube allows maximum 3 inches of slip travel
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $198.95

350083-51

Spicer Spline and Slip yoke set

  • Fits 3.5 inch steel tube OD with 0.083 wall thickness
  • Fits 1310 series universal joint (see choices at bottom of page)
    • 3.219 wide cap to cap
    • 1.062 cap diameter
    • outside snap rings
  • Maximum of 3 inches slip travel
  • Spicer Slip yoke 1.375 x 16 splines has press on seal with grease fitting
  • Spicer Spline is glidecoated (blue coating) 2.25 inches for wear resistance if properly lubricated
    • Spline butt diameter to press fit into tube - 3.345 inches

The following dimensions are taken with the supplied seal installed.

  • **CL to weld Collapsed Dimension - 9.125 inches
  • **CL to weld Dimension at MID travel - 10.625 inches
  • CL to weld Fully Extended Dimension - 12.125 inches

**Caution --- Using a rubber boot in place of the seal will lengthen the collapsed and mid point dimensions. You must factor this into your build dimensions before cutting, welding and building the driveshaft
