350083-041 Spline and Slip yoke set 1330 series fits 3.5 inch 0.083 wall steel tube allows maximum 3 inches of slip travel

Part Number:
350083-041

UPC:

Your Cost $179.95

STATUS: IN STOCK - FREE SHIPPING

350083-041

Spicer Spline and Slip yoke set

Fits 3.5 inch steel tube OD with 0.083 wall thickness
Fits 1330 series universal joint (see choices at bottom of page)
- 3.625 wide cap to cap
- 1.062 cap diameter
- outside snap rings
Maximum of 3 inches slip travel
Spicer Slip yoke 1.375 x 16 splines has press on seal with grease fitting
Spicer Spline is glidecoated (blue coating) 2.25 inches for wear resistance if properly lubricated
- Spline butt diameter to press fit into tube - 3.345 inches

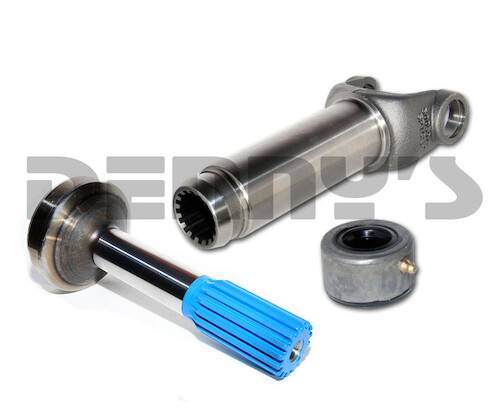

350083-041 Spline and Slip yoke set 1330 series fits 3.5 inch 0.083 wall steel tube allows maximum 3 inches of slip travel

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $179.95

350083-041

Spicer Spline and Slip yoke set

Fits 3.5 inch steel tube OD with 0.083 wall thickness
Fits 1330 series universal joint (see choices at bottom of page)
- 3.625 wide cap to cap
- 1.062 cap diameter
- outside snap rings
Maximum of 3 inches slip travel
Spicer Slip yoke 1.375 x 16 splines has press on seal with grease fitting
Spicer Spline is glidecoated (blue coating) 2.25 inches for wear resistance if properly lubricated
- Spline butt diameter to press fit into tube - 3.345 inches

The following dimensions are taken with the supplied seal installed.

**CL to weld Collapsed Dimension - 8.750 inches
**CL to weld Dimension at MID travel - 10.250 inches
CL to weld Fully Extended Dimension - 11.750 inches

**Caution --- Using a rubber boot in place of the seal will lengthen the collapsed and mid point dimensions. You must factor this into your build dimensions before cutting, welding and building the driveshaft

Copywrite Denny's Driveshafts

350083-041 Spline and Slip yoke set 1330 series fits 3.5 inch 0.083 wall steel tube allows maximum 3 inches of slip travel

You May Also Need These Parts to Complete the Job

Dana Spicer 5-1330-1X GREASEABLE Universal Joint 1330 Series Part#: 5-1330-1X $20.43	Dana Spicer 5-213X Universal Joint 1330 Series Greaseable U-Joint Part#: 5-213X $19.19
DANA SPICER 5-1330X - Universal Joint 1330 Series with (4) 1.062 Bearing Caps NON Greaseable Part#: 5-1330X $20.77	DANA SPICER 5-1204X - Universal Joint 1330 Series FORD with (2) 1.125 Bearing Caps Greaseable Part#: 5-1204X $19.38
DANA SPICER 5-7438X Universal Joint 1330 Series FORD with (2) 1.125 Bearing Caps NON Greaseable Part#: 5-7438X $28.95
