Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series for Dodge Dana 60 with 29 spline pinion ...Strap & Bolt Style

Part Number:
3-4-5731-1X

UPC:

023913229986

Diagram Number:
10

Your Cost $55.95

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

Dana Spicer 3-4-5731-1X

PINION YOKE
Fits Dodge Dana 60, 61, 70 with 29 spline pinion
1350 series
OEM Strap and Bolt style
- Strap and bolt set can be purchased separately at the bottom of this page.

DIMENSIONS

Fits 1350 series u-joint 3.625 inches (3 5/8) wide with 1.188 inches (1 3/16) bearing cap diameter
SPLINE OD = 1.276
D = 1.188
E = 3.625
Q = 1.500
R = 1.875
S = 3.000

Genuine Dana Spicer Pinion Yoke

Replaces Dana Spicer 3-4-14531-1 and 3-4-12771-1

Dana Spicer 3-4-5731-1X can be used to replace the 3-4-14531-1 and 3-4-12771-1 by simply removing the dust shield. Otherwise these yokes are all the same

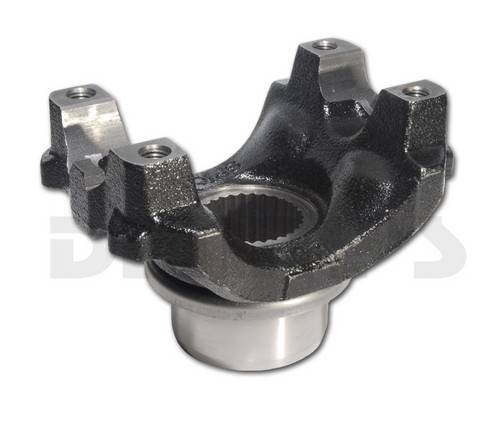

Dana Spicer 3-4-5731-1X for Dodge with Dana 60

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $55.95

Dana Spicer 3-4-5731-1X

PINION YOKE
Fits Dodge Dana 60, 61, 70 with 29 spline pinion
1350 series
OEM Strap and Bolt style
- Strap and bolt set can be purchased separately at the bottom of this page.

DIMENSIONS

Fits 1350 series u-joint 3.625 inches (3 5/8) wide with 1.188 inches (1 3/16) bearing cap diameter
SPLINE OD = 1.276
D = 1.188
E = 3.625
Q = 1.500
R = 1.875
S = 3.000

Genuine Dana Spicer Pinion Yoke

Replaces Dana Spicer 3-4-14531-1 and 3-4-12771-1

Dana Spicer 3-4-5731-1X can be used to replace the 3-4-14531-1 and 3-4-12771-1 by simply removing the dust shield. Otherwise these yokes are all the same

Dana Spicer 3-4-5731-1X for Dodge with Dana 60

You May Also Need These Parts to Complete the Job

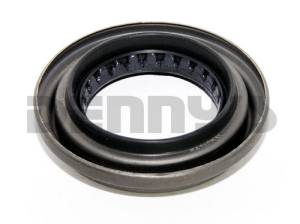

Dana Spicer 42449 Pinion Seal fits Chevy, GMC, Ford, Dodge with Dana 60 Part#: 42449 $7.95	Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G $31.64
