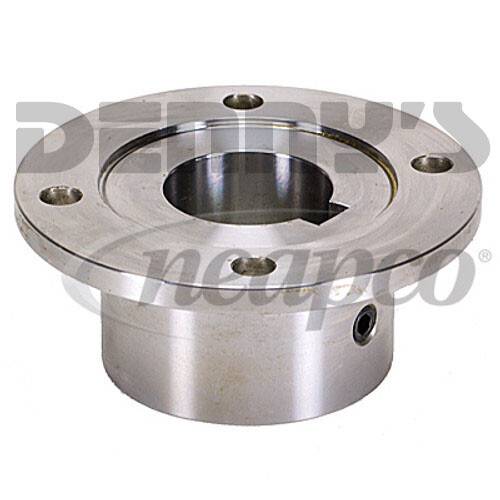

Neapco N4-1-1133-7 PTO Companion Flange 2.125 inch Round Bore with 0.500 Keyway, 4.750 Bolt Circle, 3.750 female pilot
N4-1-1133-7
Neapco N4-1-1133-7
Power Take Off Companion Flange
- 2.125 inch Round Bore
- 0.500 Keyway
- 4.750 Bolt Circle
- 3.750 female pilot
- 1480/1550 series
Limited Supply: only 2 remaining
Pricing:
$135.06
Description
Neapco N4-1-1133-7
COMPANION FLANGE for power take off applications
Series 1480, 1550
- P - 2.125 Inch Diameter Bore
- X - 0.500 in. Keyway
- X - 0.500 in. Keyway
- C - 3.750 in Female Pilot
- B - Bolt Circle Diameter - 4.750 in
- 4 Bolt Holes 0.515 in. Diameter Drilled
- Bolt Pattern - Rectangular
- 3.053 inches
- 3.639 inches
- W - Set Screw THREAD Diameter - 0.500 in.
- W - Set Screw Location - 12
- Set Screw Included
- R - Hub Diameter -
- F - Length Through Hole - 2.490 in.
- G - Flange Face to End of Hub - 2.500 in.
- A - Total Swing Diameter - 5.875 in.
Details
- N4-1-1133-7
- N4-1-1133-7
- Neapco
- Available
- New
Categories
- Driveline Parts - COMPANION FLANGES - ROUND SHAFT with KEYWAY
- COMPANION FLANGES - ROUND SHAFT with KEYWAY - 1480/1550 Series Fits ROUND SHAFT with KEYWAY
- ROUND SHAFT with KEYWAY - 1480/1550 Series Fits ROUND SHAFT with KEYWAY - Fits 2.125 inch ROUND SHAFT with .500 KEYWAY
- Driveline Parts - COMPANION FLANGES
Shipping Information
- Item Requires Shipping
- 9.0 lbs.
- W6.0000” x H4.0000” x L6.0000”
