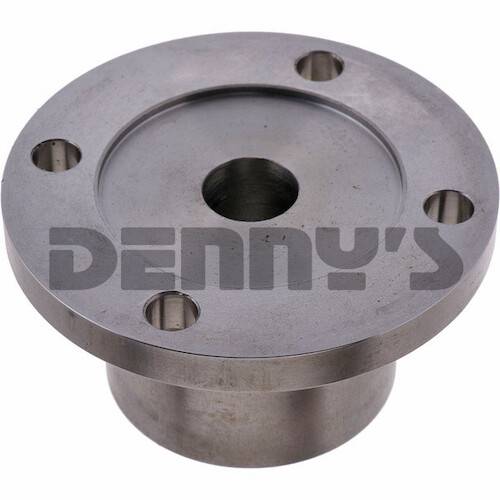

Dana Spicer 2-1-1313 PTO Companion Flange approx. 0.750 inch Round Bore with NO Keyway NO Set Screw hole to machine to whatever size you need 3.125 Bolt Circle, 2.375 female pilot

Dana Spicer 2-1-1313-1

COMPANION FLANGE for power take off applications with unfinished bore

Use 2-1-1313 to machine bore, keyway and set screw hole to whatever size you require

Series 1280, 1310

• P  - Approximately 0.750 Inch Diameter Bore

  • X - NO Keyway

• C - 2.375 in Female Pilot
• B - Bolt Circle Diameter - 3.125 in
  • 4 Bolt Holes 0.375 in. Diameter Drilled
  • Bolt Pattern - Rectangular
    • 2.0 inches
    • 2.375 inches

• W - Set Screw THREAD Diameter  - NONE

  • W - Set Screw Location - NONE

• R - Hub Diameter - 2.438 in.

• F - Length Through Hole -  1.900 in.

• G - Flange Face to End of Hub  - 2.000 in.

• A - Total Swing Diameter - 3.875 in.
