Neapco
Click on image to zoom

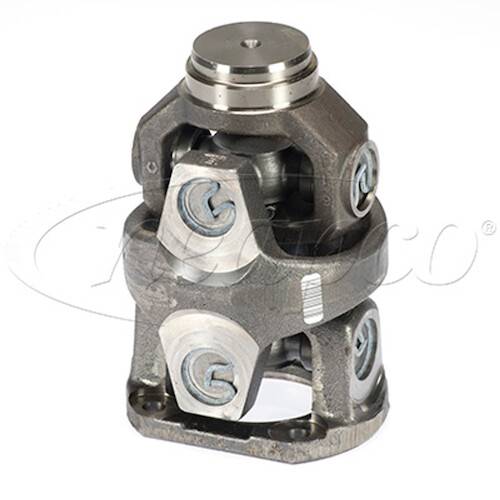

Neapco N924141G standard 22 degree joint angle Double Cardan CV Head assembly with stud yoke 1410/1415 series fits 2.500 x 0.120 wall tube 4.250 bolt circle 3.125 pilot

N924141G

Neapco N924141G

1410/1415 series Double Cardan CV Head 22 degree joint angle

STUD YOKE Fits 2.500 OD x 0.120 wall tube

  • Bolt Circle (In): 4.250
  • Butt Diameter (In): 2.258
  • Center Line To Center Line Of H Yoke (In): 3.484
  • Center Line To Point Of Weld (In): 2.094
  • Cv Head Style: Flange
  • Driveline Series: 1410/1415
  • Hole Dia./Thread Size (In)(Mm): 0.469
  • Joint Angle (Degrees): 22.0 max
  • Overall Length (In): 7.32
  • Pilot Diameter (In)(Mm): 3.125
  • Tubing Diameter And Wall (In): 2.500 X 0.120
Shipping: >>>>> SPECIAL ORDER PART: This part number is a special order. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing: $336.21

Customize Your Item

- -
 * required
Qty:
FREE SHIPPING ON PARTS ORDERS OVER $99

Description

Neapco N924141G

1410/1415 series Double Cardan CV Head 22 degree joint angle

STUD YOKE Fits 2.500 OD x 0.120 wall tube

  • Bolt Circle (In): 4.250
  • Butt Diameter (In): 2.258
  • Center Line To Center Line Of H Yoke (In): 3.484
  • Center Line To Point Of Weld (In): 2.094
  • Cv Head Style: Flange
  • Driveline Series: 1410/1415
  • Hole Dia./Thread Size (In)(Mm): 0.469
  • Joint Angle (Degrees): 22.0 max
  • Overall Length (In): 7.32
  • Pilot Diameter (In)(Mm): 3.125
  • Tubing Diameter And Wall (In): 2.500 X 0.120

Details

  • N924141G
  • N924141G
  • Neapco
  • Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 15.5 lbs.
  • W6.0000” x H6.0000” x L10.0000”
  • FREE SHIPPING ON PARTS ORDERS OVER $99
  • >>>>> SPECIAL ORDER PART: This part number is a special order. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
