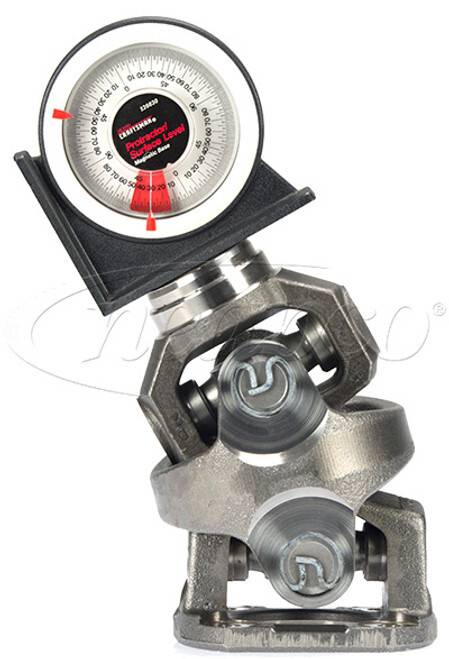

Neapco N924141HAG High Angle 30 degree Double Cardan CV Head assembly with stud yoke 1410/1415 series fits 2.500 x 0.120 wall tube 4.250 bolt circle 3.125 pilot

N924141HAG

Part Number: N924141HAG

30 degree High Angle Double Cardan CV Head with stud yoke

1410/1415 series

STUD YOKE Fits 2.500 OD x 0.120 wall tube

  • Bolt Circle (In): 4.250
  • Butt Diameter (In): 2.258
  • Center Line To Center Line Of "H" Yoke (In): 3.484
  • Center Line To Point Of Weld (In): 2.094
  • CV Head Style: Flat Flange
  • Driveline Series: 1410/1415
  • Bolt Hole Dia. (In): 0.469
  • Maximum Joint Angle (Degrees): 30.0
  • Overall Length (In): 7.32
  • Pilot Diameter (In): 3.125
Limited Supply: only 1 remaining
Shipping: >>>>> SPECIAL ORDER PART: This part number is a special order. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing: $376.60

Customize Your Item

- -
 * required
Qty:
FREE SHIPPING ON PARTS ORDERS OVER $99

Description

Part Number: N924141HAG

30 degree High Angle Double Cardan CV Head

1410/1415 series

STUD YOKE Fits 2.500 OD x 0.120 wall tube

  • Bolt Circle (In): 4.250
  • Butt Diameter (In): 2.258
  • Center Line To Center Line Of "H" Yoke (In): 3.484
  • Center Line To Point Of Weld (In): 2.094
  • CV Head Style: Flat Flange
  • Driveline Series: 1410/1415
  • Bolt Hole Dia. (In): 0.469
  • Maximum Joint Angle (Degrees): 30.0
  • Overall Length (In): 7.32
  • Pilot Diameter (In): 3.125

Details

  • N924141HAG
  • N924141HAG
  • Neapco
  • Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 15.5 lbs.
  • W6.0000” x H6.0000” x L10.0000”
  • FREE SHIPPING ON PARTS ORDERS OVER $99
  • >>>>> SPECIAL ORDER PART: This part number is a special order. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
