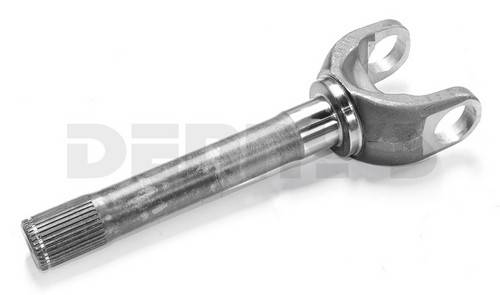

Dana Spicer 3-82-871 Outer Axle shaft 12.0 inches 35 Splines fits Dana 60 front GM trucks 1977 to 1990
Diagram Number: 55-Outer
3-82-871
Dana Spicer 3-82-871
OUTER AXLE SHAFT
- Fits Dana 60
- 35 Spline axle
- Chevy and GMC
- 1977 to 1990
Genuine DANA SPICER Front Axle Shaft
DIMENSIONS
- B1 = 1.5 inch diameter with 35 Splines
- B = 12 inches
- Use with Spicer SPL55-3X or SPL55-4X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches
Limited Supply: only 4 remaining
Pricing:
$139.95
Description
Dana Spicer 3-82-871
OUTER AXLE SHAFT
- Fits Dana 60
- 35 Spline axle
- Chevy and GMC
- 1977 to 1990
Genuine DANA SPICER Front Axle Shaft
DIMENSIONS
- B1 = 1.5 inch diameter with 35 Splines
- B = 12 inches
- Use with Spicer SPL55-3X or SPL55-4X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches
Details
- 3-82-871
- 3-82-871
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 10.0 lbs.
- W6.0000” x H5.0000” x L13.0000”
- FREE SHIPPING ON PARTS ORDERS OVER $99
