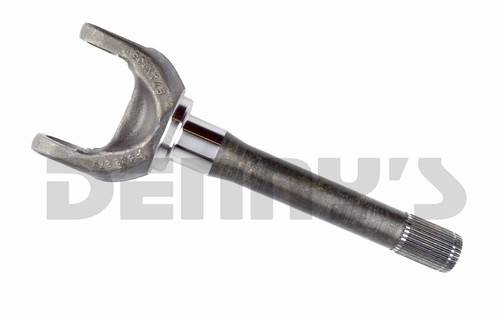

Dana Spicer 40955 Outer Axle shaft 12.0 inches 30 Splines fits Dana 60 front GM trucks 1977 to 1990
Diagram Number: 55-Outer
40955
Dana Spicer 40955
OUTER AXLE SHAFT
- Fits Dana 60
- 30 Spline axle
- Chevy and GMC
- 1977 to 1990
Genuine DANA SPICER Front Axle Shaft
DIMENSIONS
- B1 = 1.31 inch diameter with 30 Splines
- B = 12 inches
- Use with Spicer SPL55-3X or SPL55-4X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches
Limited Supply: only 3 remaining
Pricing:
$169.95
Description
Dana Spicer 40955
OUTER AXLE SHAFT
- Fits Dana 60
- 30 Spline axle
- Chevy and GMC
- 1977 to 1990
Genuine DANA SPICER Front Axle Shaft
DIMENSIONS
- B1 = 1.31 inch diameter with 30 Splines
- B = 12 inches
- Use with Spicer SPL55-3X or SPL55-4X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches
Details
- 40955
- 40955
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 10.0 lbs.
- W6.0000” x H5.0000” x L13.0000”
