Dana Spicer 2-40-5023529 Spline long travel 19 based on 20 splines fits 2.0 OD x 0.120 wall tube
2-40-5023529
Dana Spicer 2-40-5023529

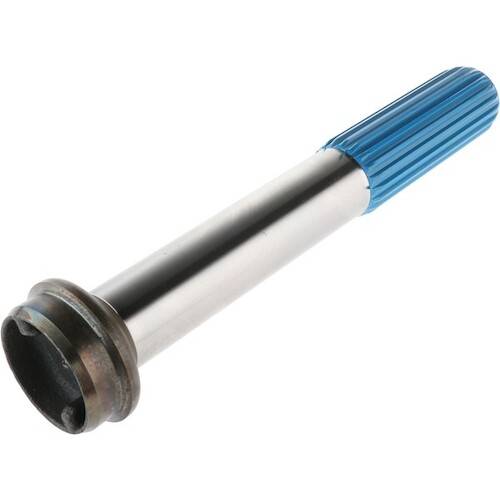

- Driveshaft Spline
Long Travel Spline - use with Dana Spicer 2-3-5023651KX slip yoke for 4.5 inches of in/out movement
- This spline is 19 based on 20 and fits the 18 based on 20 SLIP YOKE in two positions
- Fits 2.0 x 0.120 wall tube
Limited Supply: only 2 remaining
Pricing:
$200.34
Description
Dana Spicer 2-40-5023529
- Driveshaft Spline
Long Travel Spline - use with Dana Spicer 2-3-5023651KX slip yoke for 4.5 inches of in/out movement
- This spline is 19 based on 20 and fits the 18 based on 20 SLIP YOKE in two positions
- Fits TUBE DIAMETER = 2.0 inch OD
- Fits TUBE WALL THICKNESS = 0.120 inch
- Major SPLINE Diameter = 1.310
- SPLINES = 19/20
- K = 8.875
- L = 3.625
- R = 8.500
Details
- 2-40-5023529
- 2-40-5023529
- Spicer
- Available
- New
Categories
- Driveline Parts - BUILD IT YOURSELF - PARTS LISTS - 1310 SPLINE and SLIP DRIVESHAFT
- BUILD IT YOURSELF - PARTS LISTS - 1310 SPLINE and SLIP DRIVESHAFT - BUILD 1310 SERIES with 2 INCH DIAMETER TUBE
- 1310 SPLINE and SLIP DRIVESHAFT - BUILD 1310 SERIES with 2 INCH DIAMETER TUBE - SPLINE and SLIP
- Driveline Parts - BUILD IT YOURSELF - PARTS LISTS
Shipping Information
- Item Requires Shipping
- 5.0 lbs.
- W3.0000” x H3.0000” x L9.0000”
