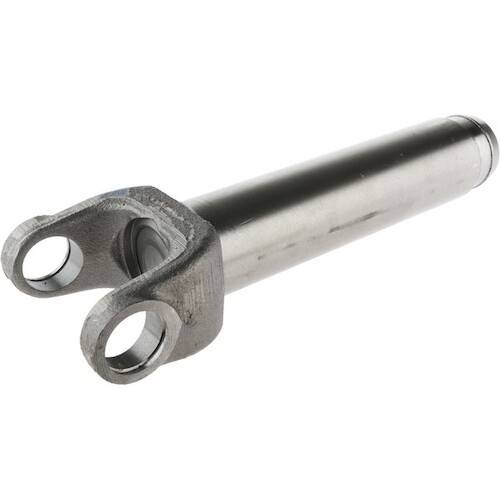

Dana Spicer 2-3-5023651KX Slip Yoke long travel 1310 series 18 based on 20 splines 1.338
2-3-5023651KX
Dana Spicer 2-3-5023651KX1310 Series Long Travel Slip Yoke - use with 2-40-5023529 spline for 4.5 inches of in/out movement
- Spline/Hole Outside Diameter = 1.338
- Number of Splines = 18 based on 20 - 2 wide spaces
- Series = 1310
- Lock up style = OUTSIDE
- Universal Joint Width = 3.219
- D - Universal Joint Bore = 1.062
- Comes with Dust Cap Part Number = 211121X
- Dust Cap Style = 1 PIECE PRESS ON
- F - Center of u-joint bore to plug = 1.437
- J - Center of u-joint bore to End of Slip yoke barrel = 9.812
Limited Supply: only 2 remaining
Pricing:
$274.24
Description
Dana Spicer 2-3-5023651KX1310 Series Long Travel Slip Yoke - use with 2-40-5023529 spline for 4.5 inches of in/out movement
- Spline/Hole Outside Diameter = 1.338
- Number of Splines = 18 based on 20 - 2 wide spaces
- Series = 1310
- Lock up style = OUTSIDE
- Universal Joint Width = 3.219
- D - Universal Joint Bore = 1.062
- Comes with Dust Cap Part Number = 211121X
- Dust Cap Style = 1 PIECE PRESS ON
- F - Center of u-joint bore to plug = 1.437
- J - Center of u-joint bore to End of Slip yoke barrel = 9.812
Details
- 2-3-5023651KX
- 2-3-5023651KX
- Spicer
- Available
- New
Categories
- Driveline Parts - BUILD IT YOURSELF - PARTS LISTS - 1310 SPLINE and SLIP DRIVESHAFT
- BUILD IT YOURSELF - PARTS LISTS - 1310 SPLINE and SLIP DRIVESHAFT - BUILD 1310 SERIES with 2 INCH DIAMETER TUBE
- 1310 SPLINE and SLIP DRIVESHAFT - BUILD 1310 SERIES with 2 INCH DIAMETER TUBE - SPLINE and SLIP
- Driveline Parts - BUILD IT YOURSELF - PARTS LISTS
Shipping Information
- Item Requires Shipping
- 7.0 lbs.
- W4.0000” x H2.0000” x L10.0000”
