Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck


Driveshaft and Driveline Parts > CV PARTS DOUBLE CARDAN ALL > CV PARTS DOUBLE CARDAN - FORD > Centering Yokes Flat Flange Style > 1350 Series - 4.25 x 2 inch pilot

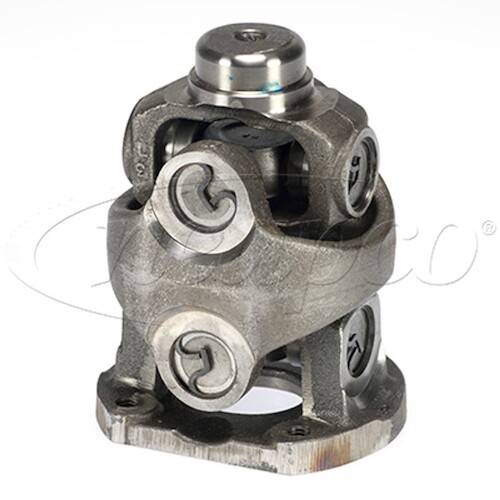

Neapco N921048G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 2.0 inch pilot
Part Number:
N921048G


UPC:
083869030968
 Your Cost $259.46
STATUS:  FACTORY DIRECT TO YOU

Part Number: N921048G

32 degree 1350 series Double Cardan CV Head with stud yoke

Fits Tubing Diameter (In): 2.0 OD x 0.120 wall

  • Bolt Circle (In): 4.250
  • Butt Diameter (In): 1.770
  • Center Line To Center Line Of "H" Yoke (In): 2.875
  • Center Line To Point Of Weld (In): 1.440
  • CV Head Style: Flat Flange
  • Driveline Series: 1350
  • Bolt Hole Dia. (In):  M12-1.75 METRIC THREAD
  • Maximum Joint Angle (Degrees): 32.0
  • Overall Length (In): 5.940
  • Pilot Diameter (In): 2.00
Neapco
Neapco N921048G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 2.0 inch pilot
Neapco N921048G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 2.0 inch pilot
Click for Larger Photo
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $259.46

Part Number: N921048G

32 degree 1350 series Double Cardan CV Head with stud yoke

Fits Tubing Diameter (In): 2.0 OD x 0.120 wall

  • Bolt Circle (In): 4.250
  • Butt Diameter (In): 1.770
  • Center Line To Center Line Of "H" Yoke (In): 2.875
  • Center Line To Point Of Weld (In): 1.440
  • CV Head Style: Flat Flange
  • Driveline Series: 1350
  • Bolt Hole Dia. (In):  M12-1.75 METRIC THREAD
  • Maximum Joint Angle (Degrees): 32.0
  • Overall Length (In): 5.940
  • Pilot Diameter (In): 2.00


Neapco N921048G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 2.0 inch pilot

Neapco N921048G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 2.0 inch pilot
