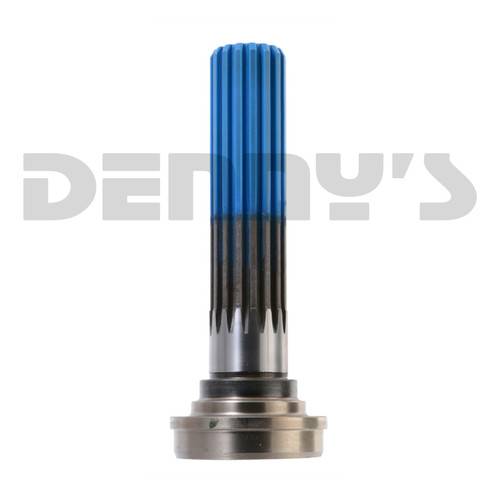

Dana Spicer 4-53-61 MIDSHIP SPLINE Fits 3.5 inch .095 wall tube 1.750 inch Diameter with 16 Splines
4-53-61
DANA SPICER 4-53-61
- MIDSHIP SPLINE
- Use with Center Support Bearing
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing:
$158.95
Description
DANA SPICER 4-53-61
- MIDSHIP SPLINE
- Use with Center Support Bearing
- Fits any series 16 Spline SLIP YOKE designed for 1.750 inch diameter spline
- Fits TUBE DIAMETER = 3.5 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .095 inch Tube wall thickness
- Major SPLINE Diameter = 1.750
- SPLINES = 16
- STYLE = 1
- B = 2.188
- C = 1.772
- G = .812
- K = 8.562
- L = 5.938
- Y = 7.469
- SPECIAL NOTES:
- Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)
- Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)
