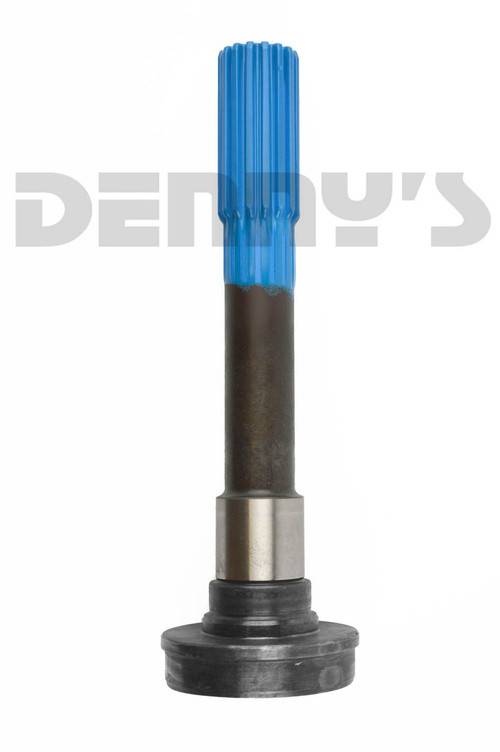

Dana Spicer 3-53-2281 MIDSHIP SPLINE Fits 3.5 inch .083 wall tube 1.500 inch Diameter with 15/16 Splines

DANA SPICER 3-53-2281

• MIDSHIP SPLINE
• Use with Center Support Bearing
• Fits any series 15 based on 16 Spline SLIP YOKE designed for 1.500 inch diameter spline
  • Fits TUBE DIAMETER = 3.5 inch OUTSIDE TUBE Diameter
  • Fits TUBE WALL THICKNESS =  .083 inch Tube wall thickness
  • Major SPLINE Diameter = 1.500
  • SPLINES = 15/16
  • STYLE = 2
  • B = 1.810
  • C = 1.575
  • G = .875
  • K = 10.719
  • L = 3.000
  • Y = 9.625
• SPECIAL NOTES:
  • Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)

  • May use boot 211916X or dust cap 211158X, order separate
