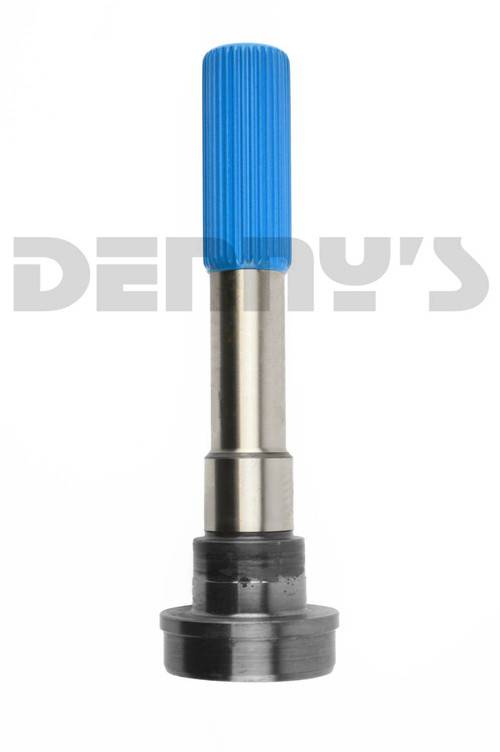

Dana Spicer 3-53-1991 MIDSHIP SPLINE Fits 2.75 inch .065 wall tube 1.375 inch Diameter with 31/32 Splines

SKU: 3-53-1991

DANA SPICER 3-53-1991

Limited Supply: only 4 remaining

Pricing: $432.95

Description

DANA SPICER 3-53-1991

MIDSHIP SPLINE
Use with Center Support Bearing
Fits any series 31 based on 32 Spline SLIP YOKE designed for 1.375 inch diameter spline
- Fits TUBE DIAMETER = 2.75 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .065 inch Tube wall thickness
- Major SPLINE Diameter = 1.375
- SPLINES = 31/32
- STYLE = 2
- B = 1.719
- C = 1.378
- G = 1.125
- K = 8.812
- L = 3.344
- Y = 7.469
SPECIAL NOTES:
- Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)
