Dana Spicer 3-53-1951 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.500 inch Diameter with 15/16 Splines

Part Number:
3-53-1951

UPC:

023913229788

Your Cost ~~$124.25~~ Sale Price $116.84

You Save $7.41

STATUS: FACTORY DIRECT with FREE SHIPPING

DANA SPICER 3-53-1951

Dana Spicer 3-53-1951 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.500 inch Diameter with 15/16 Splines

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT with FREE SHIPPING

YOUR COST: ~~$124.25~~ Sale Price $116.84

You Save $7.41

DANA SPICER 3-53-1951

MIDSHIP SPLINE
Use with Center Support Bearing
Fits any series 15 based on 16 Spline SLIP YOKE designed for 1.500 inch diameter spline
- Fits TUBE DIAMETER = 3.0 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .083 inch Tube wall thickness
- Major SPLINE Diameter = 1.500
- SPLINES = 15/16

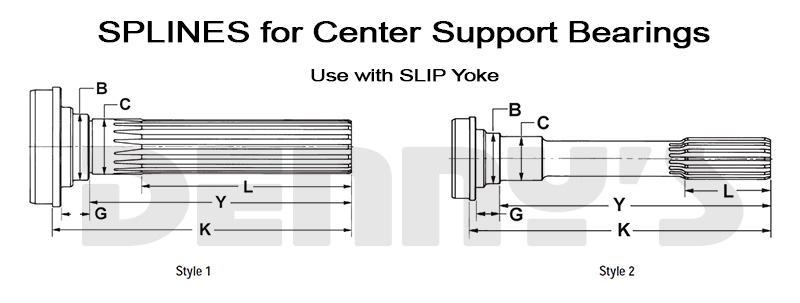

- STYLE = 2
- B = 1.810
- C = 1.575
- G = .875
- K = 10.625
- L = 3.000
- Y = 9.500
SPECIAL NOTES:

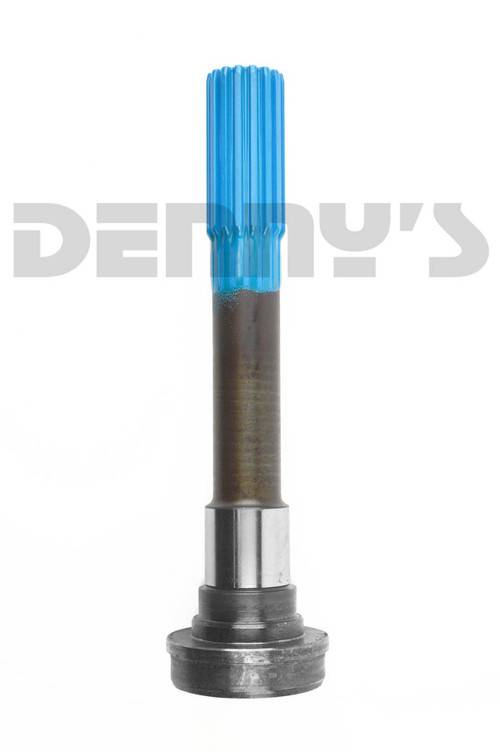

- Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)
- May use boot 211503X, order separate

Dana Spicer 3-53-1951 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.500 inch Diameter with 15/16 Splines
