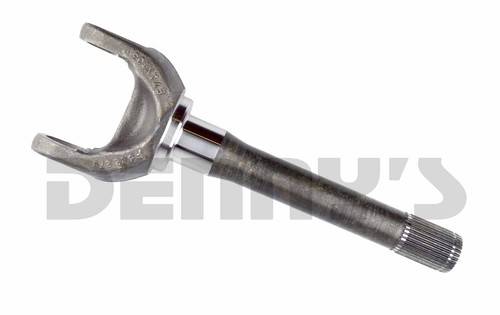

Dana Spicer 40955 Outer Axle shaft 12.0 inches 30 Splines fits Dana 60 front Dodge 1975 to 1993

DANA SPICER 40955

Dodge 1 Ton truck with Dana 60 FRONT OUTER AXLE SHAFT with 30 Splines

• 1975-1989 Dodge Dana 60 with 30 spline External Hubs

• 1990-1993 Dodge Dana 60 with 30 spline Internal Hubs

Genuine DANA SPICER Front Axle Shaft

OUTER

• Dimension "B1" = 1.31 inch diameter with 30 Splines
• Dimension "B" = 12 inches
• Use with Spicer SPL55-3X or SPL55-4X Universal Joint...See bottom of this page
• U-Joint Snap Ring Dimension = 3 inches
• U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
