Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

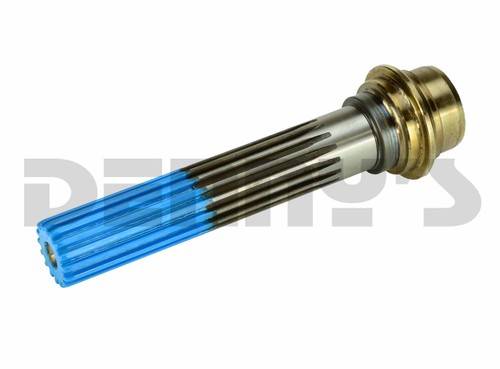

Dana Spicer 2-53-511 MIDSHIP SPLINE Fits 2.0 inch .083 wall tube 1.375 inch Diameter with 16 Splines
Part Number:
2-53-511


UPC:
023913229054
Your Cost $117.42 Sale Price $98.34
You Save $19.08
STATUS:  IN STOCK

DANA SPICER 2-53-511

  • MIDSHIP SPLINE
  • Use with Center Support Bearing

Spicer
Dana Spicer 2-53-511 MIDSHIP SPLINE Fits 2.0 inch .083 wall tube 1.375 inch Diameter with 16 Splines
Dana Spicer 2-53-511 MIDSHIP SPLINE Fits 2.0 inch .083 wall tubing 1.375 inch Diameter with 16 Splines
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $117.42 Sale Price $98.34
You Save $19.08

DANA SPICER 2-53-511

  • MIDSHIP SPLINE
  • Use with Center Support Bearing
  • Fits any series 16 Spline SLIP YOKE designed for 1.375 inch diameter spline
    • Fits TUBE DIAMETER = 2.0 inch OUTSIDE TUBE Diameter
    • Fits TUBE WALL THICKNESS =  .083 inch Tube wall thickness
    • Major SPLINE Diameter = 1.375
    • SPLINES = 16
    • STYLE = 1
    • B = 1.688
    • C = 1.378
    • G = .812
    • K = 8.250
    • L = 5.406
    • Y = 6.938
  • SPECIAL NOTES:
    • Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)



CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions

Dana Spicer 2-53-511 MIDSHIP SPLINE Fits 2.0 inch .083 wall tube 1.375 inch Diameter with 16 Splines

Dana Spicer 2-53-511 MIDSHIP SPLINE Fits 2.0 inch .083 wall tubing 1.375 inch Diameter with 16 Splines

You May Also Need These Parts to Complete the Job

DANA SPICER 211175X CENTER SUPPORT BEARING with 1.378 ID fits 2WD and 4WD FORD F100, F150, F250, F350 from 1948 to 2003 with 1-3/8 inch diameter spline
$39.95 $37.95
