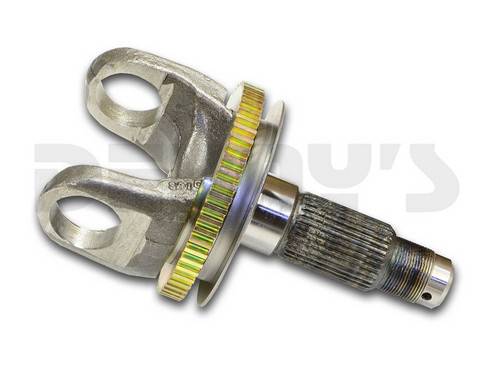

Dana Spicer 75690X OUTER STUB AXLE 33 splines fits 1994 to 1999 Dodge Ram 2500 and 3500 with Dana 60 front comes with ABS tone ring

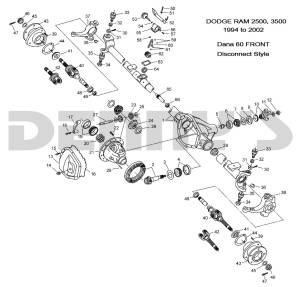

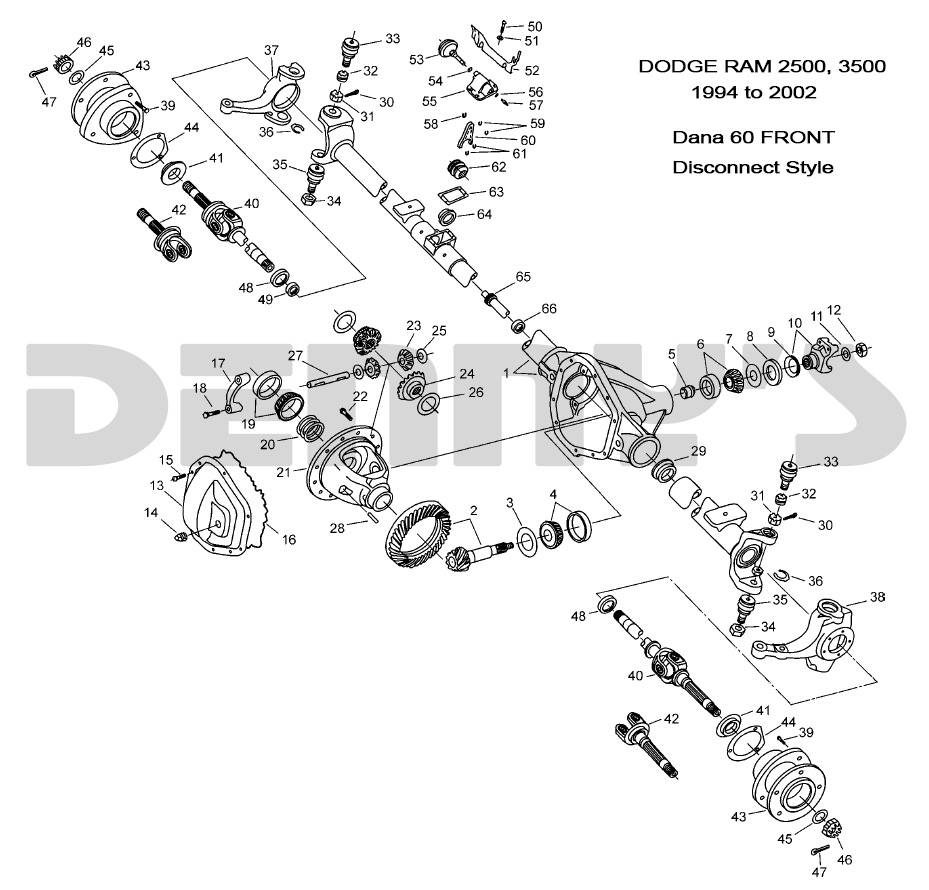

Diagram Number: 42-OUTER
75690X
Dana Spicer 75690X
OUTER STUB AXLE
- Fits Dodge Ram 2500 and 3500 with Dana 60 front axle
- 1994, 1995, 1996, 1997, 1998, 1999
- 1994, 1995, 1996, 1997, 1998, 1999
- Fits both Right side and Left side
- 33 Splines
- Comes with ABS tone ring for antilock brakes
DIMENSIONS
- B1 = 33 Spline
- B = 7.05 inches
- U-Joint Lock Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
Use with Spicer SPL55-3X (Non Greaseable) or SPL55-4X (Greaseable) Universal Joint...See bottom of this page
- We will press the SPL55-3X (Non Greaseable) or SPL55-4X (Greaseable) U-Joint into the axle shaft FREE of Charge...all you need to do is ask!
Outer Axle Nut and Washer available...please see the bottom of this page to purchase.
Limited Supply: only 8 remaining
Pricing:
$179.77
Description
Dana Spicer 75690X
OUTER STUB AXLE
- Fits Dodge Ram 2500 and 3500 with Dana 60 front axle
- 1994, 1995, 1996, 1997, 1998, 1999
- 1994, 1995, 1996, 1997, 1998, 1999
- Fits both Right side and Left side
- 33 Splines
- Comes with ABS tone ring for antilock brakes
DIMENSIONS
- B1 = 33 Spline
- B = 7.05 inches
- U-Joint Lock Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
Use with Spicer SPL55-3X (Non Greaseable) or SPL55-4X (Greaseable) Universal Joint...See bottom of this page
- We will press the SPL55-3X (Non Greaseable) or SPL55-4X (Greaseable) U-Joint into the axle shaft FREE of Charge...all you need to do is ask!
Outer Axle Nut and Washer available...please see the bottom of this page to purchase.
Details
- 75690X
- 75690X
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 8.0 lbs.
- W6.0000” x H5.0000” x L10.0000”
- FREE SHIPPING ON PARTS ORDERS OVER $99
