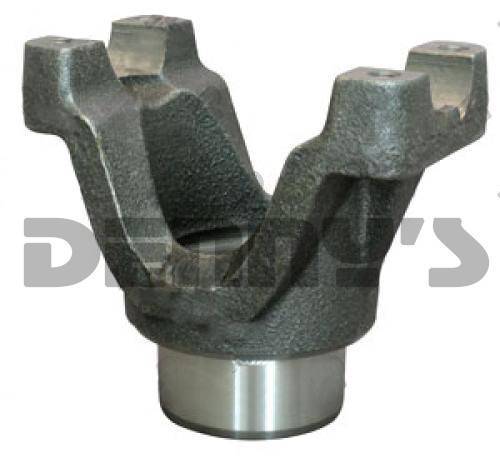

6263551 Pinion Yoke High Angle 1330 series strap & bolt style fits DANA 35 with 26 splines replacement for Dana Spicer 2-4-7631-1

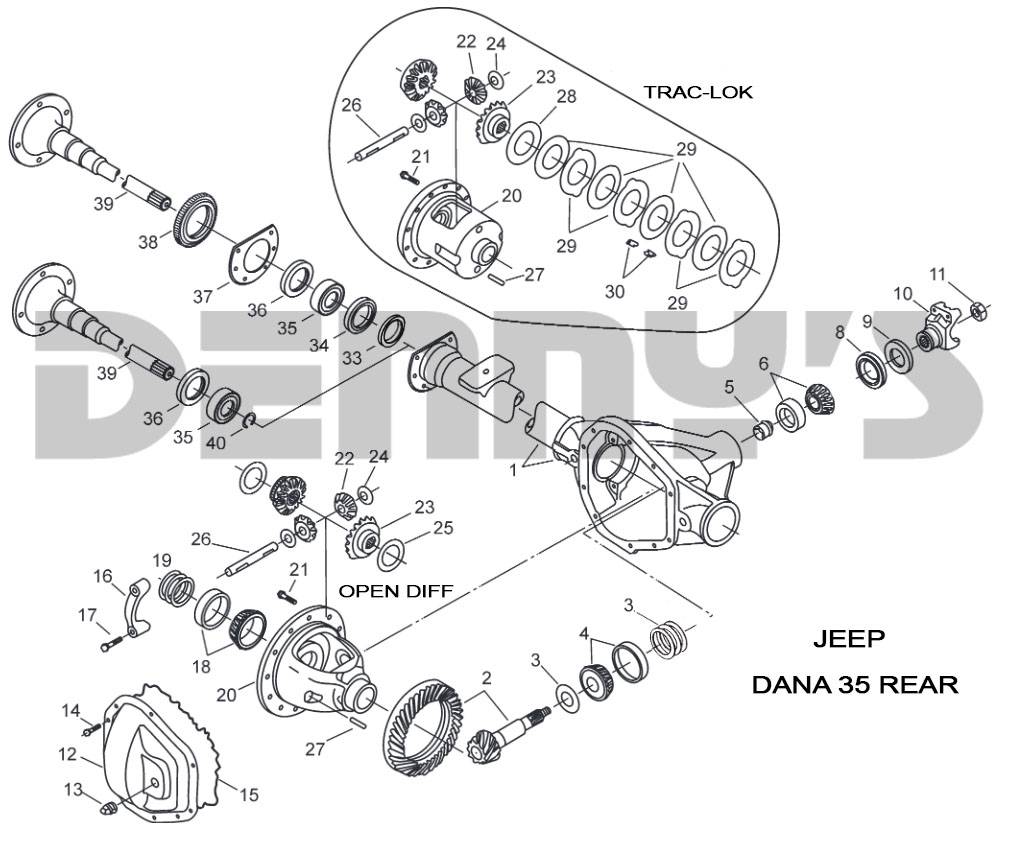

Diagram Number: 10
6263551
6263551
1330 series Pinion Yoke - High Angle
Fits Dana 35 REAR
- 26 spline
- 1.844 hub seal surface diameter
- 1330 series
- Strap and Bolt Style
- Replacement for Dana Spicer 2-4-7631-1
- DOES NOT FIT Dana 30 or Dana 44
Limited Supply: only 1 remaining
Pricing:
$69.95
Description
6263551
1330 series Pinion Yoke - High Angle
Fits Dana 35 REAR
- 26 spline
- 1.844 hub seal surface diameter
- 1330 series
- Strap and Bolt Style
- Replacement for Dana Spicer 2-4-7631-1
- DOES NOT FIT Dana 30 or Dana 44
Dimensions
- Strap & Bolt Set Sold Separately
- 1330 series
- 26 spline
- SPLINE OD = 1.146
- D = 1.062
- E = 3.625
- Q = 1.375
- R = 1.844
- S = 3.562
- COUNTERBORE DEPTH = .120
Details
- 6263551
- 6263551
- ZDDS3
- Available
- New
Shipping Information
- Item Requires Shipping
- 2.1 lbs.
- W6.0000” x H5.0000” x L5.0000”
