Yukon YP SP706570 replacement for Dana Spicer 706570X SPINDLE with bearing and seals fits 1985 to 1993-1/2 DODGE D500, D600, D800 with DANA 44 Disconnect front axle - FREE SHIPPING

Part Number:
YP SP706570

UPC:

883584323419

Your Cost $187.95

STATUS: IN STOCK - FREE SHIPPING

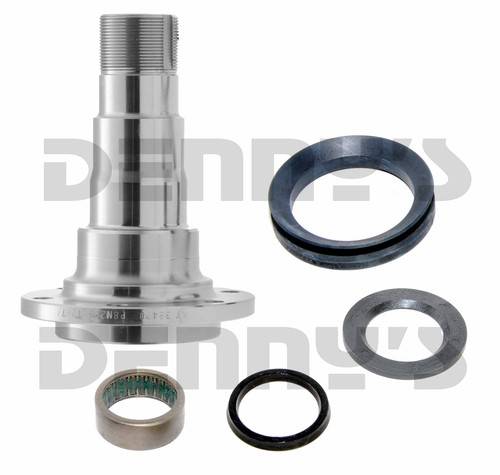

Yukon YP SP706570 replacement for Dana Spicer 706570X

SPINDLE with bearing and seal kit
- Comes with 706527X spindle bearing and seal kit
- Comes with inner spindle bearing installed at the proper depth.
Fits DODGE D500, D600, D800 with Dana 44 Disconnect front axle
- 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1993-1/2
NOTE: For 1985, 1986, 1987
- This spindle will also fit LEFT side but you must remove the internal needle bearing that is not needed on 1985 to 1987 axles with left side bearing and seal at outer end of left side axle tube.
6 Bolt Holes

Yukon YP SP706570 replacement for Dana Spicer 706570X SPINDLE with bearing and seals fits 1985 to 1993-1/2 DODGE D500, D600, D800 with DANA 44 Disconnect front axle - FREE SHIPPING

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $187.95

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Yukon YP SP706570 replacement for Dana Spicer 706570X

SPINDLE with bearing and seal kit
- Comes with 706527X spindle bearing and seal kit
- Comes with inner spindle bearing installed at the proper depth.
Fits DODGE D500, D600, D800 with Dana 44 Disconnect front axle
- 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1993-1/2
NOTE: For 1985, 1986, 1987
- This spindle will also fit LEFT side but you must remove the internal needle bearing that is not needed on 1985 to 1987 axles with left side bearing and seal at outer end of left side axle tube.
6 Bolt Holes

DIMENSIONS

A = 1-5/8 in. OD for Outer Wheel Bearing
B = 2 in. OD for Inner Wheel Bearing
C = 2-1/2 in. OD for Seal
D = 3-3/8 in.
E = 7/16 in.
F = 3/8 in.
G = 5-5/8 in.
H = 6-7/16 in.
K = 4-3/4 in.
Bolt Holes = 6
Bolt Hole Diameter = .390 in.

Also known as part #: YPSP706570

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts
