9.5 inch GM REAR End Parts > PINION YOKES > with 14 BOLT COVER - 30 SPLINES

Dana Spicer 3-4-8691-1X Pinion Yoke 1350 Series 1981 to 1997 Chevy and GM fits 9.5 inch 14 Bolt 30 spline Strap and Bolt style

Part Number:
3-4-8691-1X

UPC:

023913231095

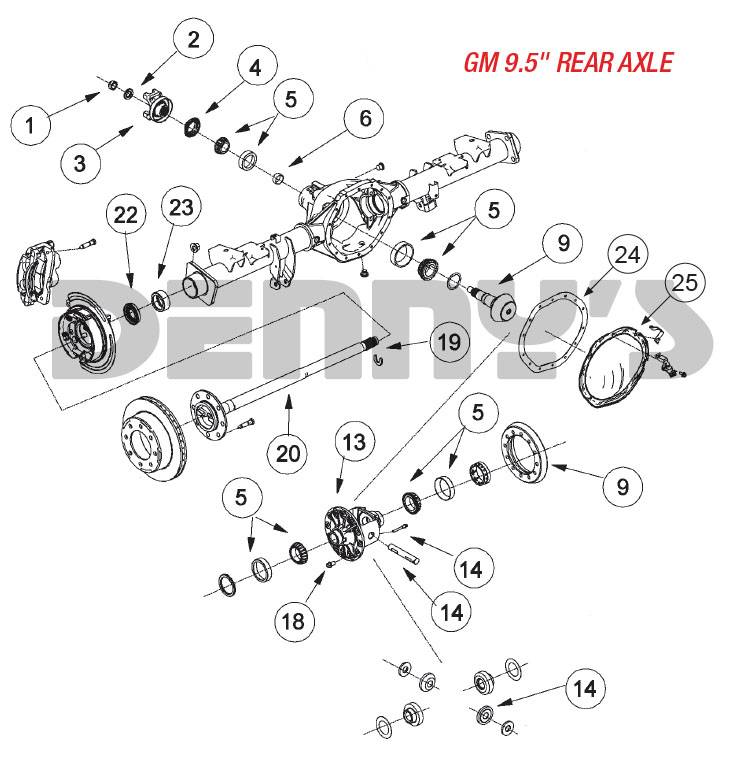

Diagram Number:
3

Your Cost $91.95

STATUS: IN STOCK

Dana Spicer 3-4-8691-1X

1350 series cast pinion yoke

Strap and Bolt style

Fits 1981 to 1997 Chevy and GM 9.5 inch 14 bolt REAR
30 splines
SPLINE OD = 1.312

D = 1.188
E = 3.625
Q = 1.156
R = 1.938
S = 3.125

Spicer

Dana Spicer 3-4-8691-1X Pinion Yoke 1350 Series 1981 to 1997 Chevy and GM fits 9.5 inch 14 Bolt 30 spline Strap and Bolt style

Dana Spicer 3-4-8691-1X Pinion Yoke 1350 Series 1981 to 1997 Chevy and GM fits 9.5 inch 14 Bolt 30 spline Strap and Bolt style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $91.95

Dana Spicer 3-4-8691-1X

1350 series cast pinion yoke

Strap and Bolt style

Fits 1981 to 1997 Chevy and GM 9.5 inch 14 bolt REAR
30 splines
SPLINE OD = 1.312

D = 1.188
E = 3.625
Q = 1.156
R = 1.938
S = 3.125

image/jpeg

Dana Spicer 3-4-8691-1X Pinion Yoke 1350 Series 1981 to 1997 Chevy and GM fits 9.5 inch 14 Bolt 30 spline Strap and Bolt style

Dana Spicer 3-4-8691-1X Pinion Yoke 1350 Series 1981 to 1997 Chevy and GM fits 9.5 inch 14 Bolt 30 spline Strap and Bolt style

You May Also Need These Parts to Complete the Job

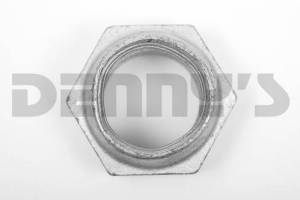

AAM 517900 Washer for pinion nut GM 9.5 inch 14 bolt REAR fits up to 2013 Part#: 517900 $1.70	AAM 9783762 Pinion nut for 9.5 inch 14 bolt Rear fits up to 2013 Part#: 9783762 $1.95
Timken 3896 Pinion seal for 1981 to 1997 GM 9.5 Inch 14 Bolt Rear End Part#: 3896 $16.10	Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G ~~$24.55~~ $22.95
Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.20	Dana Spicer 5-1350-1X GREASEABLE Universal Joint 1350 Series fitting in end of bearing cap Part#: 5-1350-1X $32.60
Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54	DANA SPICER 3-70-28X Strap and Bolt set fits 1350/1410 series Dana 60, 61, 70, 80 rear end yokes designed for 1.187 diameter u-joint bearing caps Part#: 3-70-28X $7.72
