Neapco 1-0020 strap and bolt set designed for 1.188 bearing cap for 1355 and 1415 series Tab Style pinion yoke GM 9.5 inch rear

43831

NEAPCO 1-0020

  • 1355/1415 Series Strap & Bolt Set
    • Fits GM 9.5 inch rear with 1355/1415 series Tab Style Pinion Yoke
      • Fits 1.188 bearing caps

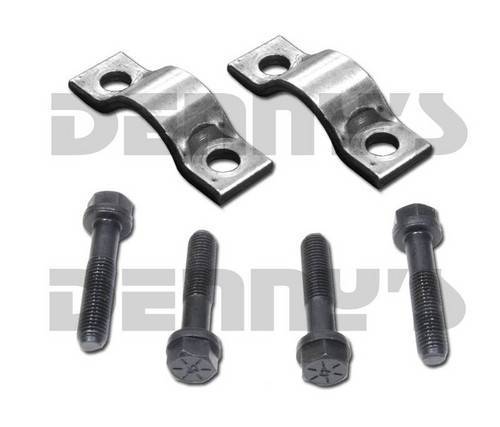

  • Strap and bolt set comes with (2) Straps (4) 5/16 fine thread Bolts.
  • Replace that old stretched out original set with a new one.
  • Same as Spicer 3-70-58X

DIMENSIONS

  • BEARING SIZE: 1.188
  • BOLT HOLE DIAMETER: 0.340
  • CL TO CL: 1.660
  • Fits SERIES: 1350
  • BOLT LENGTH UNDER HEAD: 1.500
  • STRAP WIDTH: 0.750
  • THREAD SIZE: 0.312 - 24 (5/16 diameter)
Pricing: $9.47

Customize Your Item

- -
 * required
Qty:

Description

NEAPCO 1-0020

  • 1355/1415 Series Strap & Bolt Set
    • Fits GM 9.5 inch rear with 1355/1415 series Tab Style Pinion Yoke
      • Fits 1.188 bearing caps
  • Strap and bolt set comes with (2) Straps (4) 5/16 fine thread Bolts.
  • Replace that old stretched out original set with a new one.
  • Same as Spicer 3-70-58X

DIMENSIONS

  • BEARING SIZE: 1.188
  • BOLT HOLE DIAMETER: 0.340
  • CL TO CL: 1.660
  • Fits SERIES: 1350
  • BOLT LENGTH UNDER HEAD: 1.500
  • STRAP WIDTH: 0.750
  • THREAD SIZE: 0.312 - 24 (5/16 diameter)

Details

  • 43831
  • 43831
  • Neapco
  • Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 0.1 lbs.
  • W2.0000” x H2.0000” x L1.0000”
