9299944 Chromoly Pinion Yoke u-Bolt style 7290 series fits DANA 60 with 29 spline pinion gear
Part Number:
9299944


UPC:

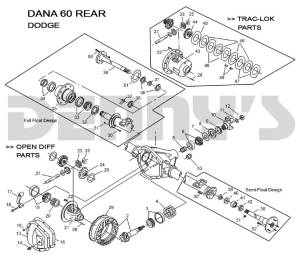

Diagram Number:
10
Your Cost $153.95
Sorry, sold out
STATUS:  SOLD OUT...More Coming Soon

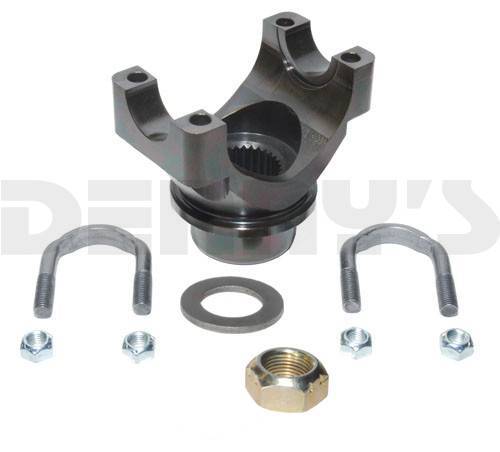

9299944

Chromoly Pinion Yoke 7290 Series

  • Fits DODGE Dana 60
    • Fits ALL Dodge, Plymouth and Chysler Dana 60 rear ends with 29 spline pinion gear
  • Fits 7290 Series universal joint DODGE "Large" U-joint
    • 24 = 2.625 between flats where "C" clip locks u-joint in place
    • 22 = 1.125 Bearing Cap Diameter
  • 29 spline
  • Forged Chromoly for superior strength

INCLUDES

  • Pinion nut and washer
  • 7290 series U-bolt set.



DIMENSIONS

  • 21A = 3.375 inch
  • 25 = 1.875 inch
  • Length through spline hole = 1.500 inch
    • full spline - no counterbore
  • 23 =  1.276 inch
  • Washer OD = 1.500 inch
  • Washer ID =  .900 inch
  • Washer thickness =  .120 inch
  • Socket wrench size for nut =  1-5/16 inch
9299944 Chromoly Pinion Yoke u-Bolt style 7290 series fits DANA 60 with 29 spline pinion gear
9299944 Chromoly Pinion Yoke u-Bolt style 7290 series fits DANA 60 with 29 spline pinion gear
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  SOLD OUT...More Coming Soon
YOUR COST:  $153.95

9299944

Chromoly Pinion Yoke 7290 Series

  • Fits DODGE Dana 60
    • Fits ALL Dodge, Plymouth and Chysler Dana 60 rear ends with 29 spline pinion gear
  • Fits 7290 Series universal joint DODGE "Large" U-joint
    • 24 = 2.625 between flats where "C" clip locks u-joint in place
    • 22 = 1.125 Bearing Cap Diameter
  • 29 spline
  • Forged Chromoly for superior strength

INCLUDES

  • Pinion nut and washer
  • 7290 series U-bolt set.



DIMENSIONS

  • 21A = 3.375 inch
  • 25 = 1.875 inch
  • Length through spline hole = 1.500 inch
    • full spline - no counterbore
  • 23 =  1.276 inch
  • Washer OD = 1.500 inch
  • Washer ID =  .900 inch
  • Washer thickness =  .120 inch
  • Socket wrench size for nut =  1-5/16 inch
