Jeep > FRONT AXLES and RELATED PARTS > DANA 30 - FRONT > PINION YOKE

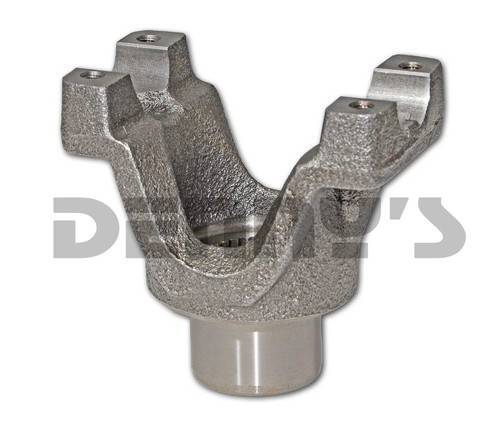

6258114 Pinion Yoke 1330 series High Angle fits DANA 30 with 26 spline pinion 3.732 tall yoke

Part Number:
6258114

UPC:

Your Cost $72.95

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

Part Number: 6258114

Pinion Yoke...Strap & Bolt Style

1330 series
Fits all Dana 30, 44 front or rear ends with 26 spline pinion
Allows for higher operating angle

Dimensions

1330 series
26 SPLINE
SPLINE OD = 1.146
D = 1.062
E = 3.625
Q = 1.500
R = 1.552
S = 3.732
Strap & Bolt Set sold separately ...see bottom this page

6258114 Pinion Yoke 1330 series High Angle fits DANA 30 with 26 spline pinion 3.732 tall yoke

6258114 Pinion Yoke 1330 series High Angle fits DANA 30 with 26 spline pinion 3.732 tall yoke

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $72.95

Part Number: 6258114

Pinion Yoke...Strap & Bolt Style

1330 series
Fits all Dana 30, 44 front or rear ends with 26 spline pinion
Allows for higher operating angle

Dimensions

1330 series
26 SPLINE
SPLINE OD = 1.146
D = 1.062
E = 3.625
Q = 1.500
R = 1.552
S = 3.732
Strap & Bolt Set sold separately ...see bottom this page

image/jpeg

6258114 Pinion Yoke 1330 series High Angle fits DANA 30 with 26 spline pinion 3.732 tall yoke

6258114 Pinion Yoke 1330 series High Angle fits DANA 30 with 26 spline pinion 3.732 tall yoke

You May Also Need These Parts to Complete the Job

Dana Spicer 5-1330-1X GREASEABLE Universal Joint 1330 Series Part#: 5-1330-1X $20.43	Dana Spicer 5-213X Universal Joint 1330 Series Greaseable U-Joint Part#: 5-213X $19.19
DANA SPICER 5-1330X - Universal Joint 1330 Series with (4) 1.062 Bearing Caps NON Greaseable Part#: 5-1330X $20.77	Dana Spicer 5-793X Combination U-joint 1330 to GM 3R Series Part#: 5-793X $21.98
Dana Spicer 5-212X Universal Joint 1330 to 3R Series Combination U-joint Greaseable Part#: 5-212X $21.80	Dana Spicer 2-70-18X Strap and Bolt set fits Dana 60, 61, 70 pinion yokes 1310 and 1330 series designed for 1.062 diameter u-joint bearing caps Part#: 2-70-18X $7.55
