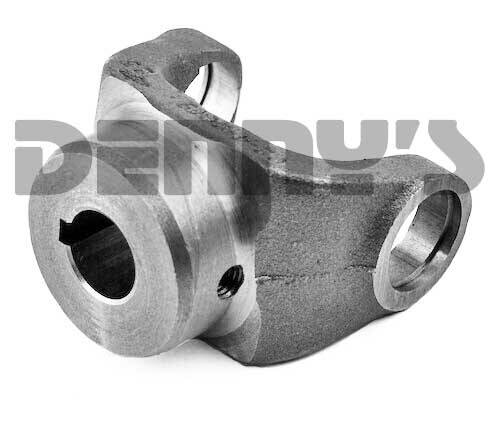

Dana Spicer 2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series
2-4-583
Dana Spicer 2-4-583
PTO End Yoke
- 1310 series
- 0.875 round bore
- 0.250 key
- 0.375 set screw
- outside snap ring style
Limited Supply: only 2 remaining
Pricing:
$57.19
Description
Dana Spicer 2-4-583
PTO End Yoke
- 1310 series
- 0.875 round bore
- 0.250 key
- 0.375 set screw
- outside snap ring style
| End Yokes - Round Bore | Model/Part #: 2-4-583 |
| Bore | 0.875 |
| R) Hub Dia. | 2.125 |
| Set Screw Dia. | 0.375 |
| E) Dimension for outside snap ring lockup | 3.219 |
| D) Bore dimension for u-joint cap | 1.062 |
| Keyway | 0.250 |
| S) C/L to Hub End | 2.562 |
| Q) Length through hole | 1.625 |
Details
- 2-4-583
- 2-4-583
- Spicer
- Available
- New
Categories
- Driveline Parts - PTO and AGRICULTURAL PARTS and SHAFTS - PTO End Yoke - ROUND Shaft
- PTO and AGRICULTURAL PARTS and SHAFTS - PTO End Yoke - ROUND Shaft - .875 ROUND SHAFT with .250 KEYWAY
- PTO End Yoke - ROUND Shaft - .875 ROUND SHAFT with .250 KEYWAY - 1310 Series
- Driveline Parts - PTO and AGRICULTURAL PARTS and SHAFTS
Shipping Information
- Item Requires Shipping
- 1.8 lbs.
- W3.0000” x H2.0000” x L3.0000”
