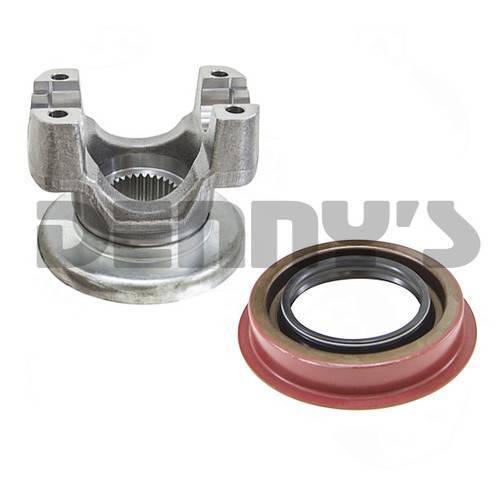

9542444 Forged Pinion yoke and seal 1350 series strap style for 1973 to 2013 Chevy GMC 10.5 inch 14 bolt full floater rear end

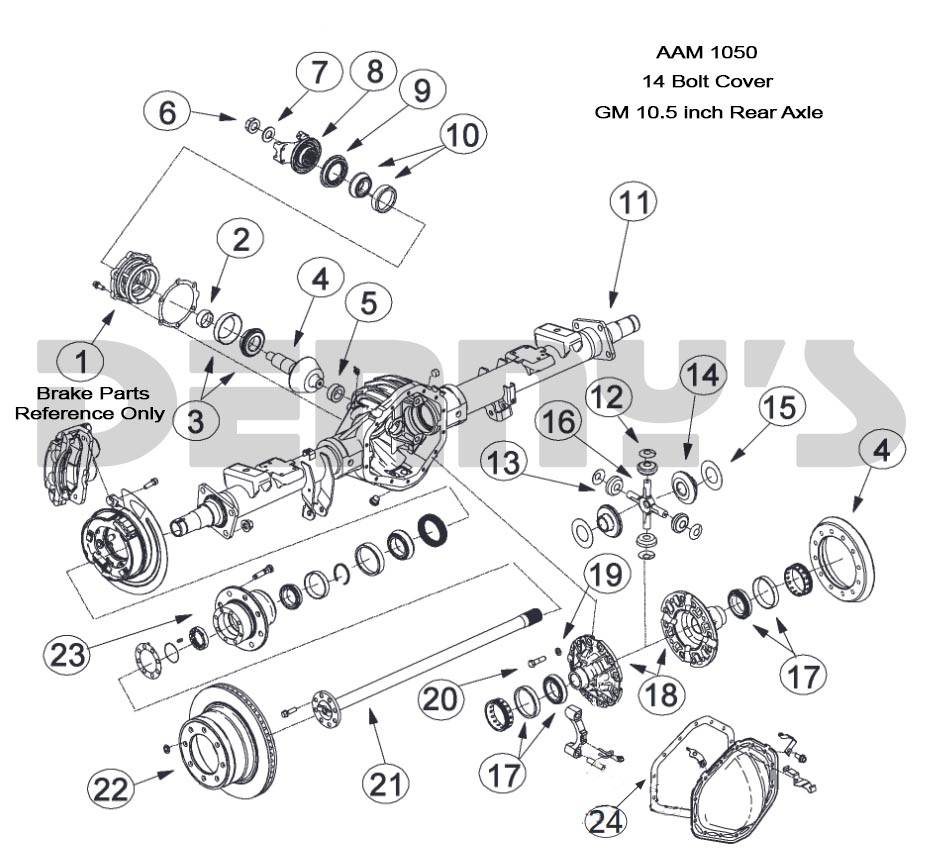

Diagram Number: 8
9542444
9542444
Pinion yoke
- Fits Chevy and GMC 10.5 inch 14 bolt full floater rear end
- 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
- 30 splines
- 1350 series forged strap and bolt style
- 3.625 inces between tabs
- Fits 1.188 u-joint cap diameter
- Use with 5-178X, 5-1350X, 2-0053G universal joints at bottom of this page
- Requires 1-0020 strap and bolt set at the bottom of this page
- Includes new pinion seal
Not Available
Pricing:
$152.95
Description
9542444
Pinion yoke
- Fits Chevy and GMC 10.5 inch 14 bolt full floater rear end
- 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
- 30 splines
- 1350 series forged strap and bolt style
- 3.625 inces between tabs
- Fits 1.188 u-joint cap diameter
- Use with 5-178X, 5-1350X, 2-0053G universal joints at bottom of this page
- Requires 1-0020 strap and bolt set at the bottom of this page
- Includes new pinion seal
Details
- 9542444
- 9542444
- ZDDS7
- Temporarily Not Available
- New
Shipping Information
- Item Requires Shipping
- 6.0 lbs.
- W6.0000” x H6.0000” x L6.0000”
- FREE SHIPPING ON PARTS ORDERS OVER $99
