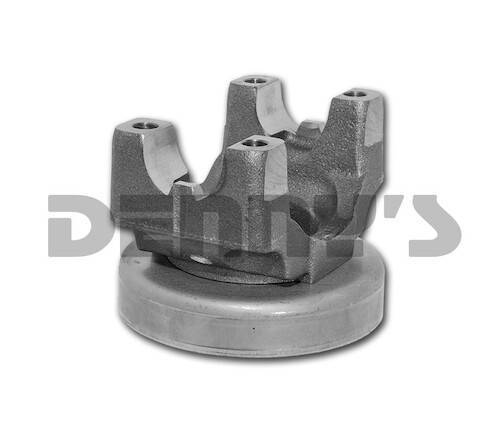

9985702 Pinion Yoke 1350 series for 1999 and newer Chevrolet and GMC car and light truck 8.6 inch 10 bolt rear end

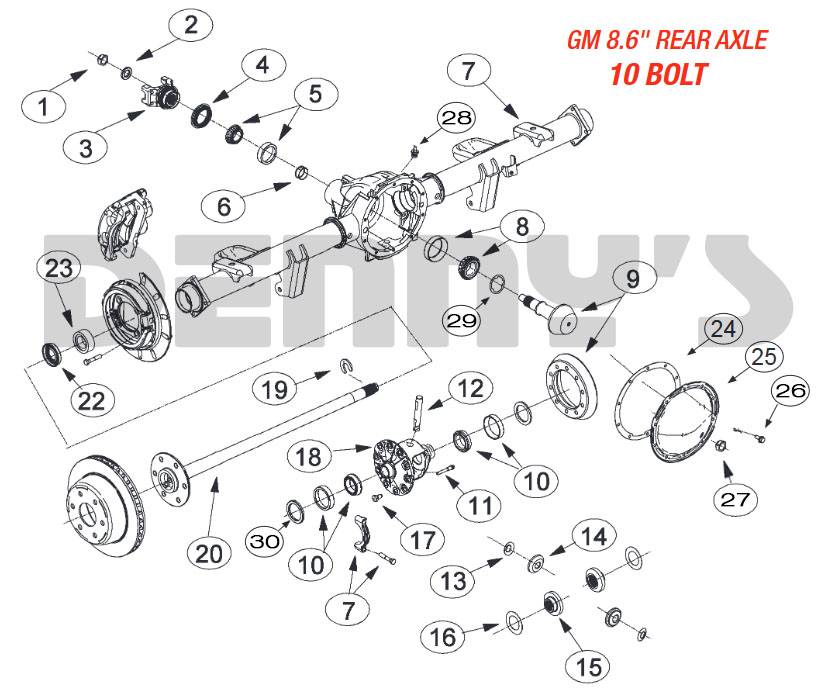

Diagram Number: 3
9985702
Part Number 9985702
1350 Series Pinion Yoke to replace original equipment
- Fits 1999 and newer Chevrolet and GM 8.6 inch car and light truck 10 Bolt Rear Ends
- 30 splines
- Fits OUTSIDE Snap Ring style universal joints listed below
- Strap and Bolt Style
- Triple Lip Seal design
DIMENSIONS
- S - Height = 3.375
- E - U-Joint lockup Inside TABS dimension = 3.625 inches
- D - U-Joint saddle diameter = 1.188 inches
- R - Seal surface diameter = 2.110
- Spline Diameter = 1.312
Not Available
Pricing:
$83.55
Description
Part Number 9985702
1350 Series Pinion Yoke to replace original equipment
- Fits 1999 and newer Chevrolet and GM 8.6 inch car and light truck 10 Bolt Rear Ends
- 30 splines
- Fits OUTSIDE Snap Ring style universal joints listed below
- Strap and Bolt Style
- Triple Lip Seal design
DIMENSIONS
- S - Height = 3.375
- E - U-Joint lockup Inside TABS dimension = 3.625 inches
- D - U-Joint saddle diameter = 1.188 inches
- R - Seal surface diameter = 2.110
- Spline Diameter = 1.312
Details
- 9985702
- 9985702
- ZDDS6
- Temporarily Not Available
- New
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W6.0000” x H5.0000” x L6.0000”
