Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits Dodge Dana 60 Front differential case

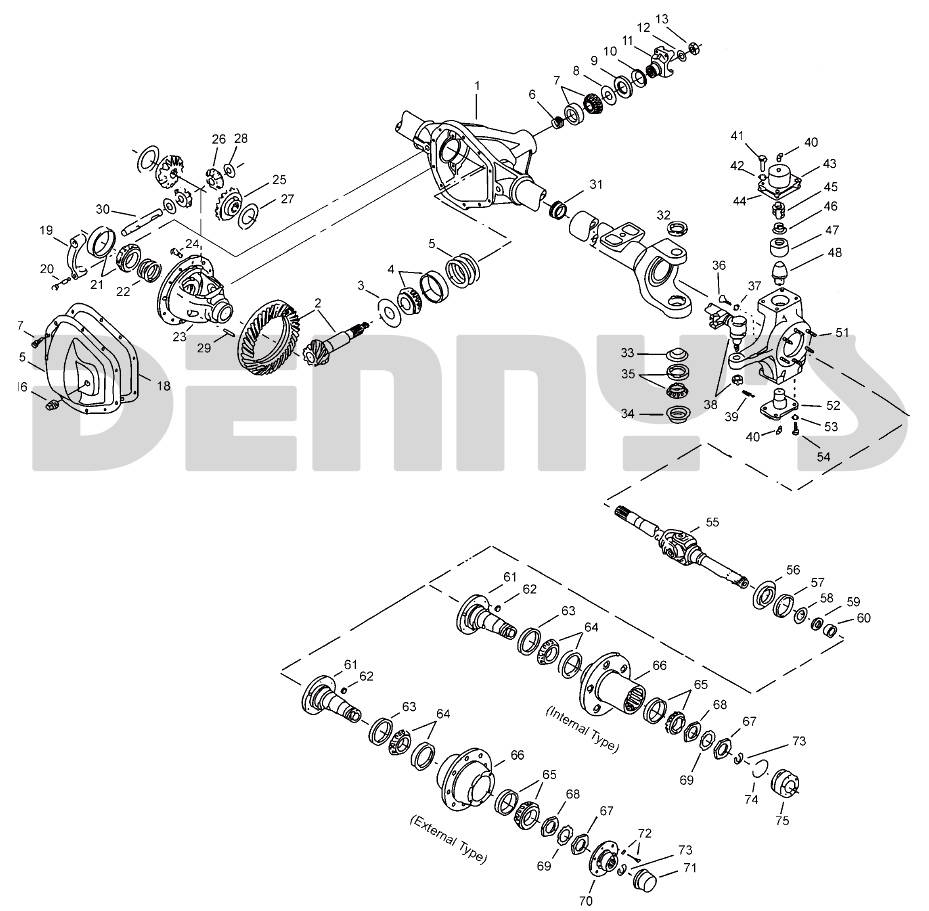

Diagram Number: 25-30

706702X

Dana Spicer 706702X

DIFFERENTIAL SPIDER GEAR KIT 1.50 - 35 spline

  • Fits Dodge Dana 60 Front with 35 spline axles
  • Fits DANA 60 OPEN differential
    • OPEN DIFF - NOT positraction
    • Fits 1.50 - 35 spline axles
    • Fits all ratio open diff cases
  • 706702X spider gear kit and 706040X Case are in Dana Spicer loaded case 2005502
  • NOTE: These spider gears (706702X) have the older style original shape to the gear as compared to the newer style formed gears (708236) that look different

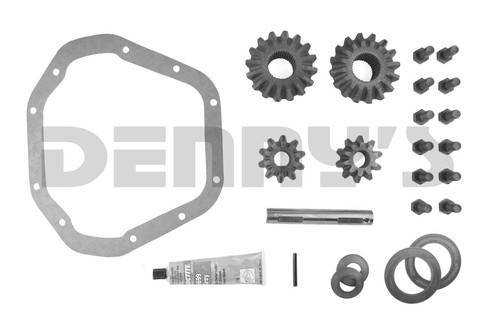

INCLUDES:

QTY Part Description
2 35625 SIDE SPIDER GEAR 1.50 - 35 SPLINE
2 34367 SMALL SPIDER GEAR
2 34730 CUPPED THRUST WASHER
2 34729 SIDE GEAR FLAT THRUST WASHER
1 30263 DIFF CROSS SHAFT
1 34687 GASKET
1 38615 2.8 OZ TUBE SILICONE
1 44810 ROLL PIN
12 701056X RING GEAR BOLTS
Not Available
Pricing: $295.95

Description

Dana Spicer 706702X

DIFFERENTIAL SPIDER GEAR KIT 1.50 - 35 spline

  • Fits Dodge Dana 60 Front with 35 spline axles
  • Fits DANA 60 OPEN differential
    • OPEN DIFF - NOT positraction
    • Fits 1.50 - 35 spline axles
    • Fits all ratio open diff cases
  • 706702X spider gear kit and 706040X Case are in Dana Spicer loaded case 2005502
  • NOTE: These spider gears (706702X) have the older style original shape to the gear as compared to the newer style formed gears (708236) that look different

INCLUDES:

QTY Part Description
2 35625 SIDE SPIDER GEAR 1.50 - 35 SPLINE
2 34367 SMALL SPIDER GEAR
2 34730 CUPPED THRUST WASHER
2 34729 SIDE GEAR FLAT THRUST WASHER
1 30263 DIFF CROSS SHAFT
1 34687 GASKET
1 38615 2.8 OZ TUBE SILICONE
1 44810 ROLL PIN
12 701056X RING GEAR BOLTS

Details

  • 706702X
  • 706702X
  • Spicer
  • 25-30
  • Temporarily Not Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 9.5 lbs.
  • W12.0000” x H3.0000” x L12.0000”
  • FREE SHIPPING ON PARTS ORDERS OVER $99
