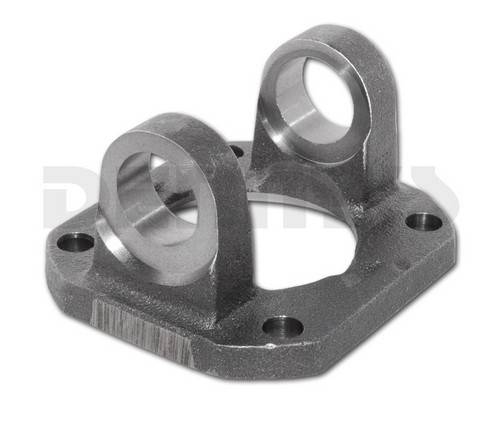

NEAPCO N3R-2-8268 Flange Yoke 3.125 diameter female pilot 3R Series INSIDE "C" Clip style
Part Number:
N3R-2-8268


UPC:
083869015132
Your Cost $72.86
Sorry, sold out
STATUS:  DISCONTINUED ITEM

NEAPCO N3R-2-8268

Flange Yoke 3R Series

  • 3R Series Flange yoke ...Use with 3R Series U-Joints listed below.
  • Bolt Pattern.... 4.25 inches (4 1/4 inches) measured diagonally
  • Pilot Diameter... 3.125 inches (3 1/8 inches) female pilot
  • CL of u-joint to mounting surface of flange....1.69 inches
  • INSIDE Snap Ring Style

1978 and newer Chevy and GMC 4x4 truck front driveshaft

  • Can be used to build a 3R series NON CV front driveshaft and eliminate the 3R series Double Cardan CV front driveshaft on 1978 and newer Chevy and GMC 4x4 trucks
  • NOT recommended for trucks with a lifted suspension.  U-joint angle may be too severe and bind up on lifted trucks causing breakage.

1973 and newer GM cars and S10 truck rear driveshaft

  • Can be used to build a 3R series NON CV driveshaft and eliminate the 3R series Double Cardan CV driveshaft on 1973 and newer GM cars and S10 trucks using a rear end that originally was designed with a flat mounting flange for a CV Joint.
  • Must check bolt pattern and pilot diameter on GM cars before 1973

Neapco
NEAPCO N3R-2-8268 Flange Yoke 3.125 diameter female pilot 3R Series INSIDE "C" Clip style
NEAPCO N3R-2-8268 Flange Yoke 3.125 diameter female pilot 3R Series INSIDE "C" Clip style
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  DISCONTINUED ITEM
YOUR COST:  $72.86

NEAPCO N3R-2-8268

Flange Yoke 3R Series

  • 3R Series Flange yoke ...Use with 3R Series U-Joints listed below.
  • Bolt Pattern.... 4.25 inches (4 1/4 inches) measured diagonally
  • Pilot Diameter... 3.125 inches (3 1/8 inches) female pilot
  • CL of u-joint to mounting surface of flange....1.69 inches
  • INSIDE Snap Ring Style

1978 and newer Chevy and GMC 4x4 truck front driveshaft

  • Can be used to build a 3R series NON CV front driveshaft and eliminate the 3R series Double Cardan CV front driveshaft on 1978 and newer Chevy and GMC 4x4 trucks
  • NOT recommended for trucks with a lifted suspension.  U-joint angle may be too severe and bind up on lifted trucks causing breakage.

1973 and newer GM cars and S10 truck rear driveshaft

  • Can be used to build a 3R series NON CV driveshaft and eliminate the 3R series Double Cardan CV driveshaft on 1973 and newer GM cars and S10 trucks using a rear end that originally was designed with a flat mounting flange for a CV Joint.
  • Must check bolt pattern and pilot diameter on GM cars before 1973

image/jpeg

NEAPCO N3R-2-8268 Flange Yoke 3.125 diameter female pilot 3R Series INSIDE "C" Clip style

NEAPCO N3R-2-8268 Flange Yoke 3.125 diameter female pilot 3R Series INSIDE "C" Clip style

Click to Load this Photo
Click Here to Enlarge
Click to Load this Photo
Click Here to Enlarge

You May Also Need These Parts to Complete the Job

4289-716 Set of 4 grade 8 CV Flange Bolts 7/16 - 14 coarse thread and 4 lock washers
$5.45
SPICER 5-3147X 3R Series U-joint Greaseable
$19.25
Dana Spicer 5-795X Universal Joint 3R Series Non greaseable
$27.27
