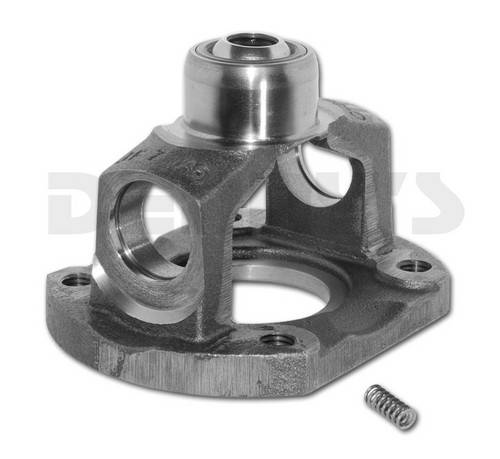

Neapco N3-83-025X Double Cardan CV Flange Yoke fits 99 - 04 Ford F250, F350 with 2.687 inch pilot diameter on REAR transfer case flange

Part Number:
N3-83-025X

UPC:

083869015804

Your Cost $101.99

STATUS: IN STOCK - FREE SHIPPING

N3-83-025X

Double Cardan CV Flange Yoke

Fits Ford F250, F350 transfer case rear output flange with 2.687 inch pilot diameter
- 1999, 2000, 2001, 2002, 2003, 2004
- NOTE: Some had the 2 inch pilot diameter ...please check this before ordering
1350 Series
NON Greaseable style
4 Mounting holes are threaded to accept OEM Ford bolts
Use with 1350 Series U-Joints listed below.
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Comes with New Spring included

DIMENSIONS

Neapco N3-83-025X Double Cardan CV Flange Yoke fits 99 - 04 Ford F250, F350 with 2.687 inch pilot diameter on REAR transfer case flange

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $101.99

N3-83-025X

Double Cardan CV Flange Yoke

Fits Ford F250, F350 transfer case rear output flange with 2.687 inch pilot diameter
- 1999, 2000, 2001, 2002, 2003, 2004
- NOTE: Some had the 2 inch pilot diameter ...please check this before ordering
1350 Series
NON Greaseable style
4 Mounting holes are threaded to accept OEM Ford bolts
Use with 1350 Series U-Joints listed below.
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Comes with New Spring included

DIMENSIONS

It is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.
- Please see the bottom of this page for new rubber boot

Neapco N3-83-025X Double Cardan CV Flange Yoke fits 99 - 04 Ford F250, F350 with 2.687 inch pilot diameter on REAR transfer case flange
