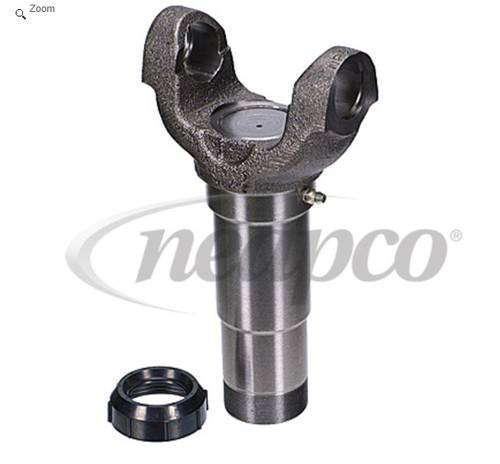

Neapco N3-3-508KX Slip Yoke 1410 series 1.500 x 16 spline 7.812 inches
Part Number:
N3-3-508KX


UPC:
083869004907
Your Cost $78.69 Sale Price $74.51
You Save $4.18
STATUS:  IN STOCK

NEAPCO N3-3-508KX

  • 1410 series Slip Yoke

Fits Spline and Slip Style Driveshaft

  • It will fit in place of the original slip yoke on any 16 spline driveshaft with a spline diameter of 1.5 inches
  • 16 splines and 1.5 inch Spline Diameter
  • 7.812 inches from center of u-joint bearing cap to end of yoke with seal removed.



Neapco
Neapco N3-3-508KX Slip Yoke 1410 series 1.500 x 16 spline 7.812 inches
Neapco N3-3-508KX Slip Yoke 1410 series 16 spline 7.812 inches
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $78.69 Sale Price $74.51
You Save $4.18

NEAPCO N3-3-508KX

  • 1410 series Slip Yoke

Fits Spline and Slip Style Driveshaft

  • It will fit in place of the original slip yoke on any 16 spline driveshaft with a spline diameter of 1.5 inches
  • Designed for 1410 series u-joint.  See bottom of this page for 1410 series u-joints
  • 4 3/16 inches between snap rings
  • 1 3/16 diameter bearing caps
  • Fits 16 spline driveshaft with 1.5 spline Diameter
    • For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
    • Spline Drawing copyright Denny's Driveshafts
  • Includes SCREW on seal
  • 7.812 inches from center of u-joint bearing cap to end of yoke with seal removed.
    • Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed
    • Slip Yoke Drawing copyright Denny's Driveshafts
  •
Neapco N3-3-508KX Slip Yoke 1410 series 1.500 x 16 spline 7.812 inches

Neapco N3-3-508KX Slip Yoke 1410 series 16 spline 7.812 inches
