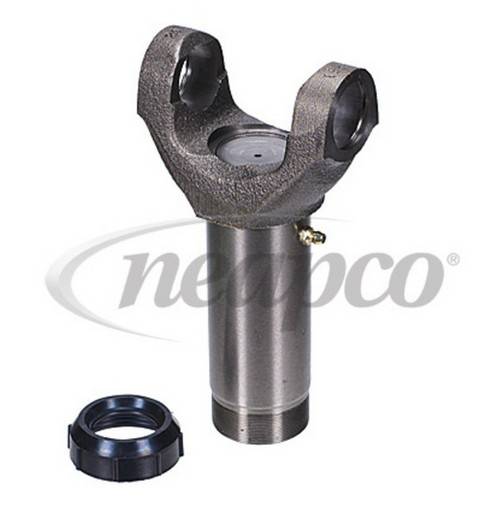

NEAPCO N3-3-2471KX Slip Yoke 1350 series 32 spline 6.625 inches
N3-3-2471KX
NEAPCO N3-3-2471KX
1350 series Slip Yoke
Fits Front or Rear Spline and Slip Style Driveshaft
- Use this slip yoke to upgrade to 1350 series and retain your existing driveshaft. It will fit in place of the original slip yoke on any 32 spline driveshaft with a spline diameter of 1.375 inches
- 32 splines and 1.375 inch Spline Diameter
- 6.625 inches from center of u-joint bearing cap to end of yoke with seal removed.
Limited Supply: only 5 remaining
Pricing:
$99.51
Description
NEAPCO N3-3-2471KX
1350 series Slip Yoke
Fits Front or Rear Spline and Slip Style Driveshaft
Use this slip yoke to upgrade to 1350 series and retain your existing driveshaft. It will fit in place of the original slip yoke on any 32 spline driveshaft with a spline diameter of 1.375 inches
Designed for 1350 series u-joint. See bottom of this page for 1350 series u-joints
- 3 5/8 inches between snap rings
- 1 3/16 diameter bearing caps
32 splines and 1.375 inch Spline Diameter
- Fits 32 spline driveshaft with 1.375 spline Diameter
- For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
- Includes screw on seal
- 6.625 inches from center of u-joint bearing cap to end of yoke with seal removed.
- Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed
Details
- N3-3-2471KX
- N3-3-2471KX
- Neapco
- Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W6.0000” x H5.0000” x L8.0000”
