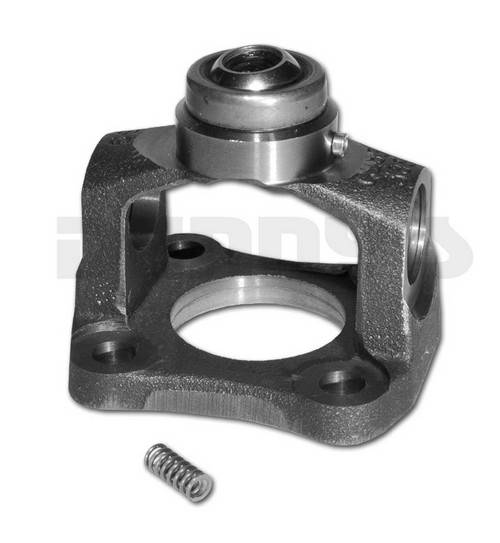

Neapco N2-83-388X GREASEABLE Flat Flange style CV Centering Yoke for Jeep with aftermarket CV Driveshaft
Part Number:
N2-83-388X


UPC:
083869016337
Your Cost $74.65
STATUS:  IN STOCK

Neapco N2-83-388X

  • FLAT FLANGE Style CV Centering Yoke...GREASEABLE
  • 1310 Series
  • Fits Jeep with aftermarket Flat Flange style 1310 series CV Driveshaft
    • 2 inch Pilot
    • 3.5 inch bolt circle....2.5 inch X 2.5 inch Bolt pattern
    • Center ball socket fits 1/2 inch stud yoke
    • New spring Included
  • DOES NOT FIt Jeep Rubicon
  • Use on any Flat Flange Style AFTERMARKET 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
  • Can be used on 1310 series CV Driveshaft to convert from yoke style to flat flange style centering yoke.

Neapco
Neapco N2-83-388X GREASEABLE Flat Flange style CV Centering Yoke for Jeep with aftermarket CV Driveshaft
Neapco N2-83-388X GREASEABLE Flat Flange style CV Centering Yoke for Jeep with aftermarket CV Driveshaft
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $74.65

Neapco N2-83-388X

  • FLAT FLANGE Style CV Centering Yoke...GREASEABLE
  • 1310 Series
  • Fits Jeep with aftermarket Flat Flange style 1310 series CV Driveshaft
    • 2 inch Pilot
    • 3.5 inch bolt circle....2.5 inch X 2.5 inch Bolt pattern
    • Center ball socket fits 1/2 inch stud yoke
    • New spring Included
  • DOES NOT FIt Jeep Rubicon

  • Use on any Flat Flange Style AFTERMARKET 1310 series CV Driveshaft to repair or rebuild Double Cardan Joint
  • Can be used on 1310 series CV Driveshaft to convert from yoke style to flat flange style centering yoke
  • Centering Yoke Fits 1310 Series Universal Joint
    • Dimension between snap rings on centering yoke is (3.219 inches) 3 7/32 inches
    • Designed to fit (1.062 inches) 1 1/16 inch U-Joint Bearing cap
Flange Yokes - CV Flange Yoke Model/Part #:  N2-83-388X
A.) Flange or Swing Dia. 4.500
B) Bolt Circle Dia. 3.500
Bolt Hole Dia. (NOM) .500-D
Number of Bolt Holes 4
C) Pilot Dia. M=male F=female 2.000-F
G) Flange Face to C/L 1.625
Neapco N2-83-388X GREASEABLE Flat Flange style CV Centering Yoke for Jeep with aftermarket CV Driveshaft

Neapco N2-83-388X GREASEABLE Flat Flange style CV Centering Yoke for Jeep with aftermarket CV Driveshaft
