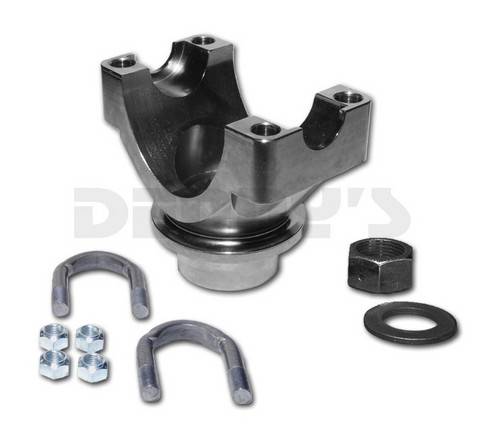

9587421 CHROMOLY PINION YOKE 1350 series with hardware fits 1963 to 1979 Chevy Corvette cast iron rear ends
Part #:
9587421
Your Cost $145.95

9587421

1350 series CHROMOLY PINION YOKE with hardware

  • Fits Chevy Corvette cast iron rear ends
    • 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
    • Fits OEM and aftermarket housings and gears
    • 4340 chromoly for ultimate strength and reliability
  • Comes complete with 1350 u-bolts and pinion nut with washer
  • 30 splines
  • 1.740 seal surface diameter fits all stock pinion seals
  • Fits 1350 series universal joint 3.625 inches wide
    • Fits 1.187 u-joint cap diameter
    • see bottom of page for u-joints
  • 3.25 inches tall
DIMENSIONS
  • D = 1.188
  • E = 3.625
  • Q = 1.190
  • R = 1.740
  • S = 3.250



9587421 CHROMOLY PINION YOKE 1350 series with hardware fits 1963 to 1979 Chevy Corvette cast iron rear ends
9587421 CHROMOLY PINION YOKE 1350 series with hardware fits 1963 to 1979 Chevy Corvette cast iron rear ends
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  SOLD OUT...More Coming Soon
YOUR COST:  $145.95

9587421

1350 series CHROMOLY PINION YOKE with hardware

  • Fits Chevy Corvette cast iron rear ends
    • 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
    • Fits OEM and aftermarket housings and gears
    • 4340 chromoly for ultimate strength and reliability
  • Comes complete with 1350 u-bolts and pinion nut with washer
  • 30 splines
  • 1.740 seal surface diameter fits all stock pinion seals
  • Fits 1350 series universal joint 3.625 inches wide
    • Fits 1.187 u-joint cap diameter
    • see bottom of page for u-joints
  • 3.25 inches tall
DIMENSIONS
  • D = 1.188
  • E = 3.625
  • Q = 1.190
  • R = 1.740
  • S = 3.250
