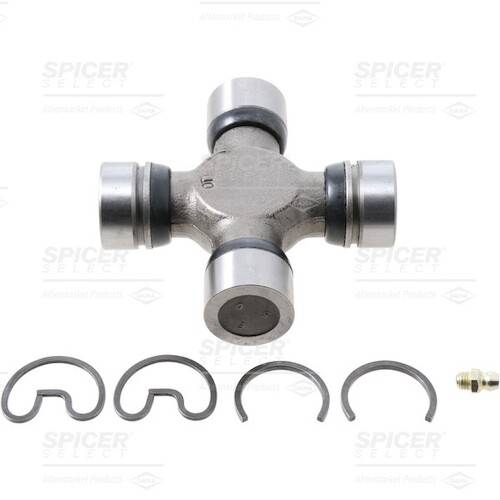

Spicer Select 25-357X Combination U-joint to connect DODGE 5380 series to 1410 Series greaseable universal joint
25-357X
Spicer Select 25-357X
COMBINATION U-JOINT
- This is a very popular and handy u-joint when connecting mismatched driveline components.
- Use this to connect 1410 series components to the old obsolete DODGE 5380 series transmission yokes, transfer case yokes and rear end yokes on the older Dodge 2WD and Dodge 4WD trucks approximately 1957 to 1981
- Greaseable universal joint
- Grease Fitting in body of u-joint
DIMENSIONS
- 1410 series
- Dimension B = 4.187 inches wide
- Dimension D = 2 bearing caps are 1.187 inch diameter
- outside snap rings
-
- DODGE 5380 series
- Dimension A = 3 inches wide
- Dimension C = 2 bearing caps are 1.232 inch diameter with inside "C" Clips to lock the cap in place.
- inside "C" Clips
- The span between the yoke inner surfaces where the "C" Clips lock in is 3 inches
-
- REPLACES obsolete Neapco 2-3190
Not Available
Pricing:
$33.60
Description
Spicer Select 25-357X
COMBINATION U-JOINT
- This is a very popular and handy u-joint when connecting mismatched driveline components.
- Use this to connect 1410 series components to the old obsolete DODGE 5380 series transmission yokes, transfer case yokes and rear end yokes on the older Dodge 2WD and Dodge 4WD trucks approximately 1957 to 1981
- Greaseable universal joint
- Grease Fitting in body of u-joint
DIMENSIONS
- 1410 series
- Dimension B = 4.187 inches wide
- Dimension D = 2 bearing caps are 1.187 inch diameter
- outside snap rings
-
- DODGE 5380 series
- Dimension A = 3 inches wide
- Dimension C = 2 bearing caps are 1.232 inch diameter with inside "C" Clips to lock the cap in place.
- inside "C" Clips
- The span between the yoke inner surfaces where the "C" Clips lock in is 3 inches
-
- REPLACES obsolete Neapco 2-3190
Details
- 25-357X
- 25-357X
- Spicer SELECT
- Temporarily Not Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 2.2 lbs.
- W6.0000” x H5.0000” x L2.0000”
