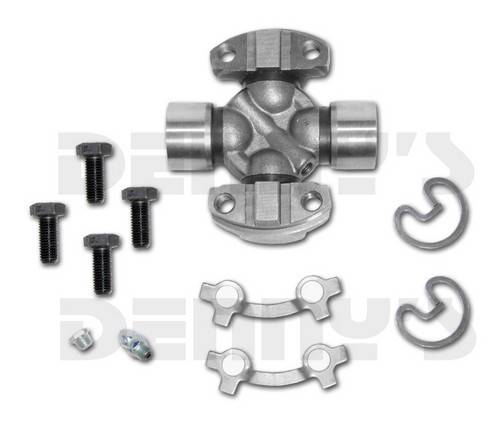

NEAPCO 2-0291 Combination Universal Joint for 1949-1959 Ford Wing Style Rear yoke to connect to 1310 series driveshaft
Part Number:
2-0291


UPC:
083869209210
Your Cost $68.30
STATUS:  IN STOCK

NEAPCO 2-0291

Outside snap ring to Wing style conversion u-joint

  • 1310 Series to 1949-1959 Ford Wing Style Combination Universal Joint.
  • Greaseable


Neapco
NEAPCO 2-0291 Combination Universal Joint for 1949-1959 Ford Wing Style Rear yoke to connect to 1310 series driveshaft
NEAPCO 2-0291 Combination Universal Joint for 1949-1959 Ford Wing Style Rear yoke to connect to 1310 series driveshaft
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $68.30

NEAPCO 2-0291

Outside snap ring to Wing style conversion u-joint

  • 1310 Series to 1949-1959 Ford Wing Style Combination Universal Joint.
  • Greaseable

This is a very handy u-joint when connecting a newer 1310 series driveshaft to a stock 1949-1959 Ford Wing Style pinion Flange.

This is what you need when you upgrade the engine and transmission to a newer more modern driveline while keeping the stock rear end.

  • GREASEABLE U-Joint
  • 1310 series

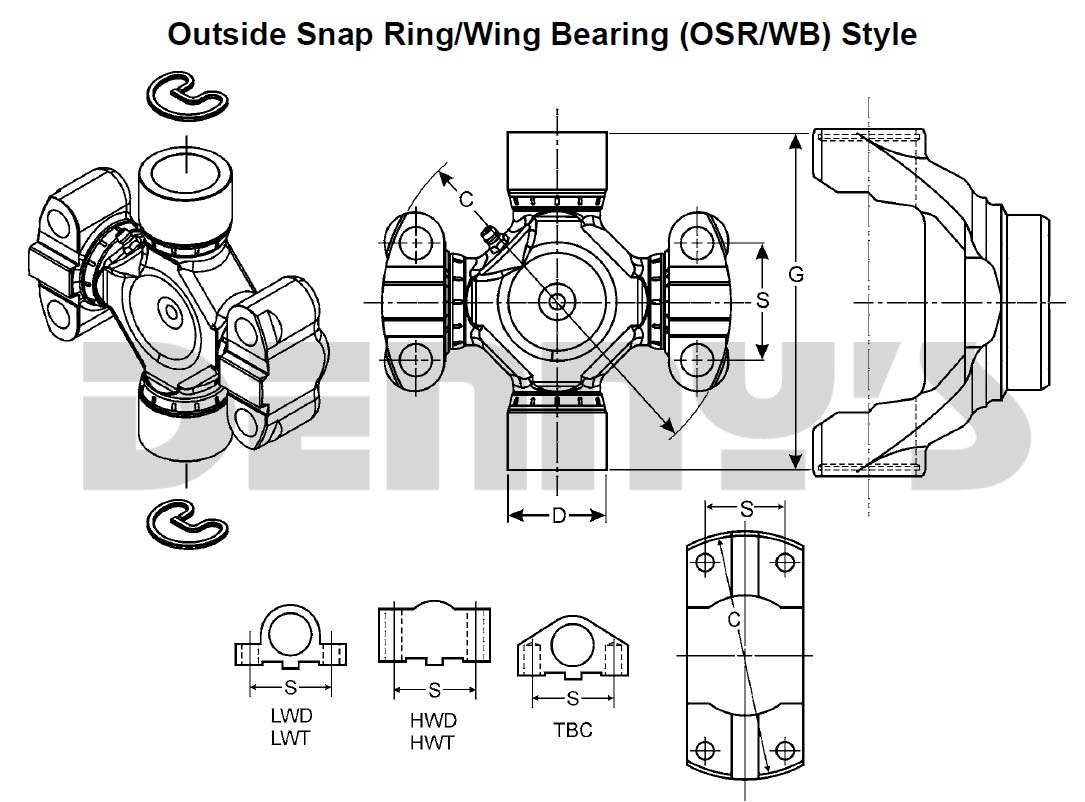

    • G = 3.219 inches (3 7/32) wide across bearing caps
    • D = 2 bearing caps are 1.062 inch (1 1/16) diameter
    • Designed for Outside snap ring style 1310 series driveshaft yokes
  • WING STYLE
    • C = 3.125 inches (3 1/8) pilot diameter...this is the distance between the raised shoulders on pinion flange that centers the u-joint.
    • LWT wing style 2 bearing caps with threaded holes
    • S = 1.312 inches between threaded bolt holes on bearing cap
    • Designed for original equipment Ford 1949-1959 Wing Style Pinion Flange

PLEASE NOTE:  This u-joint will not fit the original stock driveshaft.  It is designed to fit a newer 1310 series driveshaft ONLY




Outside snap ring style to Wing style conversion u-joints at Denny's Driveshafts

NEAPCO 2-0291 Combination Universal Joint for 1949-1959 Ford Wing Style Rear yoke to connect to 1310 series driveshaft

NEAPCO 2-0291 Combination Universal Joint for 1949-1959 Ford Wing Style Rear yoke to connect to 1310 series driveshaft
