11-52844-1 Combination U-Joint to connect 1310 series driveshaft to 1330 Series FORD 1.125 inch Big Cap end yoke

Part Number:
11-52844-1

UPC:

Your Cost $29.95

STATUS: IN STOCK

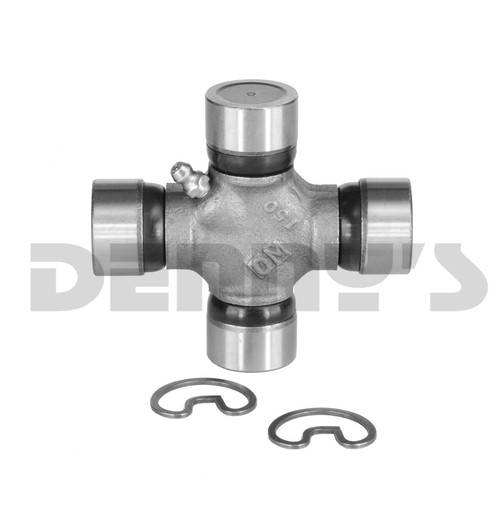

11-52844-1 Combination Universal Joint

Use this to connect a 1310 series driveshaft to a 1330 series FORD bolt on Transmission yoke, bolt on transfer case yoke or Rear end pinion yoke that requires 1 1/8 inch bearing caps.

Neapco GREASEABLE U-Joint
Grease Fitting in body of u-joint

DIMENSIONS

1310 series
- Dimension B = 3.219 inches wide ( 3 7/32 inches )
- Dimension D = 2 bearing caps are 1.0625 inch ( 1 1/16 inch ) diameter to fit driveshaft
- Outside snap rings
1330 series BIG CAP
- Dimension A = 3.625 inches wide ( 3 5/8 inches )
- Dimension C = 2 bearing caps are 1.125 inch ( 1 1/8 inch ) diameter to fit Ford Pinion yoke
- Fits TAB Style end yoke

This is a very popular and handy u-joint when connecting mismatched driveline components.

1310 to 1330 BIG CAP
