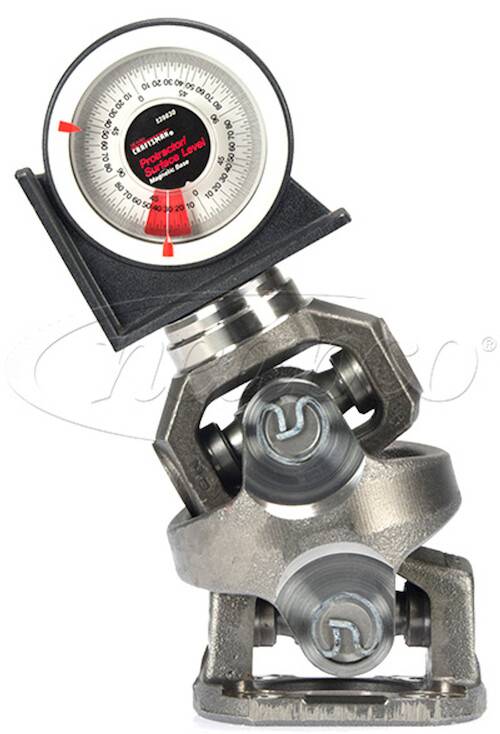

Neapco N924143HAG High Angle 30 degree Double Cardan CV Head assembly 1410 series fits 2.500 x 0.120 wall tube 4.250 bolt circle 2.688 pilot
N924143HAG
Part Number: N924143HAG
30 Degree High Angle Double Cardan CV Head 1410 series
Fits Tubing Diameter (In): 2.500 OD x 0.120 wall
- Bolt Circle (In): 4.250
- Butt Diameter (In): 2.258
- Center Line To Center Line Of "H" Yoke (In): 3.484
- Center Line To Point Of Weld (In): 2.094
- CV Head Style: Flat Flange
- Driveline Series: 1410
- Bolt Hole Dia. (In): 0.500
- Maximum Joint Angle (Degrees): 30.0
- Overall Length (In): 7.32
- Pilot Diameter (In): 2.688
Limited Supply: only 2 remaining
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing:
$455.99
Description
Part Number: N924143HAG
30 Degree High Angle Double Cardan CV Head 1410 series
Fits Tubing Diameter (In): 2.500 OD x 0.120 wall
- Bolt Circle (In): 4.250
- Butt Diameter (In): 2.258
- Center Line To Center Line Of "H" Yoke (In): 3.484
- Center Line To Point Of Weld (In): 2.094
- CV Head Style: Flat Flange
- Driveline Series: 1410
- Bolt Hole Dia. (In): 0.500
- Maximum Joint Angle (Degrees): 30.0
- Overall Length (In): 7.32
- Pilot Diameter (In): 2.688
Details
- N924143HAG
- N924143HAG
- 083869380261
- Neapco
- Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 16.1 lbs.
- W6.0000” x H6.0000” x L10.0000”
