Neapco N924142HAG High Angle 30 degree Double Cardan CV Head assembly 1410 series fits 2.750 x 0.083 wall tube 4.250 bolt circle 2.688 pilot
N924142HAG
Part Number: N924142HAG

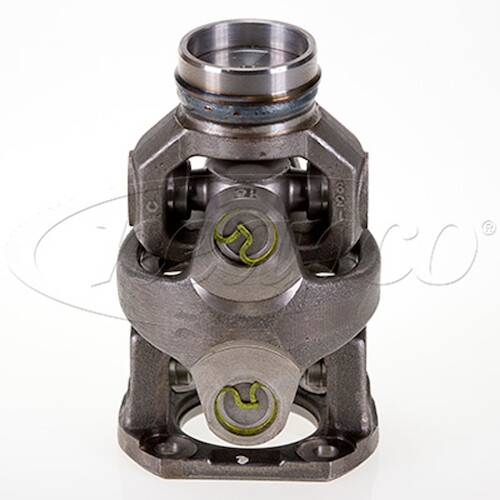

30 Degree High Angle Double Cardan CV Head 1410 series
Fits Tubing Diameter (In): 2.750 OD x 0.083 wall
- Bolt Circle (In): 4.250
- Butt Diameter (In): 2.591
- Center Line To Center Line Of "H" Yoke (In): 3.484
- Center Line To Point Of Weld (In): 2.484
- CV Head Style: Flat Flange
- Driveline Series: 1410
- Bolt Hole Dia. (In): 0.500
- Maximum Joint Angle (Degrees): 30.0
- Overall Length (In): 7.72
- Pilot Diameter (In): 2.688
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing:
$397.47
Description
Part Number: N924142HAG
30 Degree High Angle Double Cardan CV Head 1410 series
Fits Tubing Diameter (In): 2.750 OD x 0.083 wall
- Bolt Circle (In): 4.250
- Butt Diameter (In): 2.591
- Center Line To Center Line Of "H" Yoke (In): 3.484
- Center Line To Point Of Weld (In): 2.484
- CV Head Style: Flat Flange
- Driveline Series: 1410
- Bolt Hole Dia. (In): 0.500
- Maximum Joint Angle (Degrees): 30.0
- Overall Length (In): 7.72
- Pilot Diameter (In): 2.688
Details
- N924142HAG
- N924142HAG
- Neapco
- Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 16.5 lbs.
- W6.0000” x H6.0000” x L10.0000”
- FREE SHIPPING ON PARTS ORDERS OVER $99
- >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
