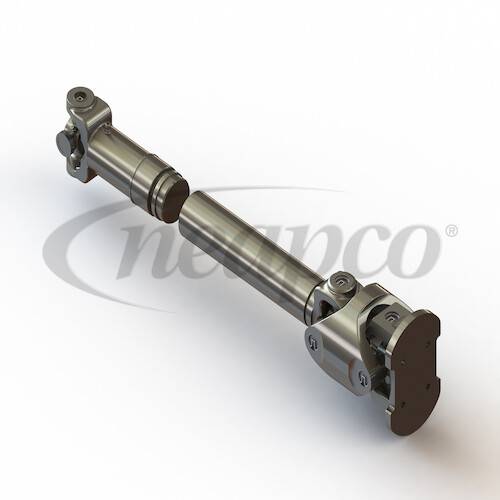

Neapco N921048G-3600 Driveshaft Unwelded KIT 1350 series 2.0 x .120 wall tubing 4.250 bolt circle with 2 inch pilot

Neapco N921048G-3600

1350 Driveshaft Unwelded KIT

• 1350 Spline and slip style with 1350 series 32 degree N921048G double cardan assembly

• Bolt Circle (In): 4.250
• Pilot Diameter: 2.0 inch
• Bolt holes: 4
• Bolt hole threaded : YES
• Bolt thread: M12 x 1.75
• Center Line To Center Line Collapsed Length (In): 50.22
• Center Line To Center Line Max. Extended Length (In): 53.50
• Driveline Series: 1350
• Length Between Holes C: 3.005
• Length Between Holes D: 3.005
• Material: Steel
• Tubing Diameter And Wall (In): 2.000 X .120
• Butt Diameter to fit tube: 1.770 in.
