Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

NEAPCO N3-3-488KX Slip Yoke 1350 series 1.5 X 16 spline 7.312 inches
Part Number:
N3-3-488KX


UPC:
083869005508
Your Cost $65.23 Sale Price $59.35
You Save $5.88
STATUS:  IN STOCK

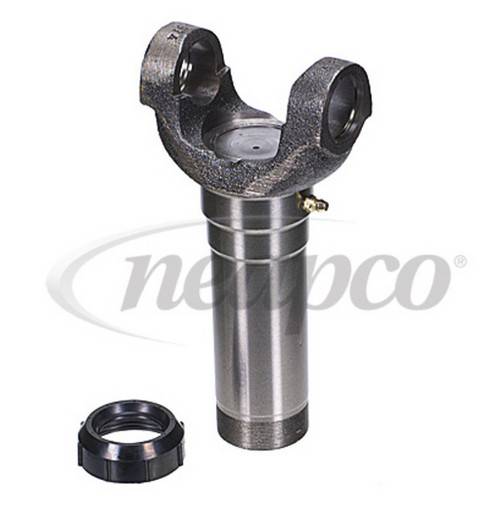

NEAPCO N3-3-488KX

1350 series Slip Yoke

Fits Front or Rear Spline and Slip Style Driveshaft

  • It will fit in place of the original slip yoke on any 16 spline driveshaft with a spline diameter of 1.5 inches
  • 16 splines and 1.5 inch Spline Diameter
  • 7.312 inches from center of u-joint bearing cap to end of yoke with seal removed.

Neapco
NEAPCO N3-3-488KX Slip Yoke 1350 series 1.5 X 16 spline 7.312 inches
NEAPCO N3-3-488KX Slip Yoke 1.5 x 16 spline
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $65.23 Sale Price $59.35
You Save $5.88

NEAPCO N3-3-488KX

1350 series Slip Yoke

Fits Front or Rear Spline and Slip Style Driveshaft

It will fit in place of the original slip yoke on any 16 spline driveshaft with a spline diameter of 1.5 inches

Designed for 1350 series u-joint.  See bottom of this page for 1350 series u-joints

  • 3 5/8 inches between snap rings
  • 1 3/16 diameter bearing caps

16 splines and 1.5 inch Spline Diameter

  • Fits 16 spline driveshaft with 1.5 spline Diameter
    • For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
    • Spline Drawing copyright Denny's Driveshafts
  • Includes SCREW on seal
  • 7.312 inches from center of u-joint bearing cap to end of yoke with seal removed.
    • Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed
    • Slip Yoke Drawing copyright Denny's Driveshafts
NEAPCO N3-3-488KX Slip Yoke 1350 series 1.5 X 16 spline 7.312 inches

NEAPCO N3-3-488KX Slip Yoke 1.5 x 16 spline
