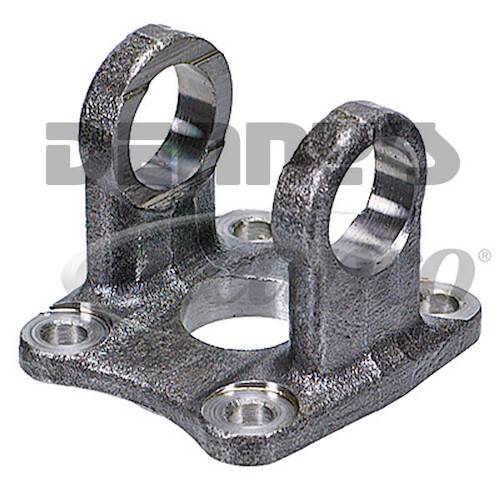

Neapco 10-0229 Power Take Off Flange Yoke 1000 series
10-0229
NEAPCO 10-0229
1000Series Flange Yoke
- A - Flange or Swing Diameter = 3.375 inches
- B - Bolt Circle Diameter = 2.750 inches
- Bolt Hole Diameter = 0.328 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 2.250 inches
- Center Pilot = MALE
- Series = 1000
- Inside "C" Clip Style
- Width between inside lock surfaces = 1.5 inches
- D - U-Joint Bearing cap diameter = .938 inches
- G - Center of u-joint bore to Face of flange = 1.562 inches
- X - inches 1.768
- Y - inches 2.107
- Special Notes: Use on 1000 series PTO applications
Not Available
Pricing:
$52.89
Description
NEAPCO 10-0229
1000Series Flange Yoke
- A - Flange or Swing Diameter = 3.375 inches
- B - Bolt Circle Diameter = 2.750 inches
- Bolt Hole Diameter = 0.328 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 2.250 inches
- Center Pilot = MALE
- Series = 1000
- Inside "C" Clip Style
- Width between inside lock surfaces = 1.5 inches
- D - U-Joint Bearing cap diameter = .938 inches
- G - Center of u-joint bore to Face of flange = 1.562 inches
- X - inches 1.768
- Y - inches 2.107
- Special Notes: Use on 1000 series PTO applications
Details
- 10-0229
- 10-0229
- Neapco
- Temporarily Not Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 3.0 lbs.
- W4.0000” x H2.0000” x L4.0000”
